ACPL-C784-000E - Avago Technologies

Description: ACPL-C784-000E Broadcom, Isolation Amplifier, 5 V, 8-Pin SSOP

Download ACPL-C784-000E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

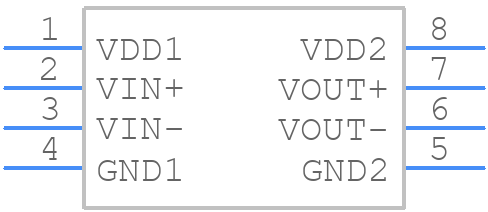

ACPL-C784-000E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
ACPL-C784-000E - Avago Technologies PCB footprint - Small Outline Packages - Small Outline Packages - STRETCHED SO-8 PACKAGE (SS0-8)
click to zoom
3D Models
ACPL-C784-000E - Avago Technologies - 3D model - Small Outline Packages - STRETCHED SO-8 PACKAGE (SS0-8)
click to zoom

ACPL-C784-000E Details

  • Manufacturer Part Number:

    ACPL-C784-000E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP8,.45

  • Pin Count:

    8

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    8

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    100 MHz

  • Common Mode Voltage-Max:

    2.8 V

  • Isolation Voltage-Min:

    5000 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    6.807 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.45

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.607 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Max:

    8.4

  • Voltage Gain-Min:

    7.6

  • Width:

    5.85 mm

ACPL-C784-000E Frequently Asked Questions (FAQs)

  • A good PCB layout for the ACPL-C784-000E involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths and widths to reduce electromagnetic interference (EMI).
  • To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range (-40°C to 100°C), and consider using a heat sink or thermal management system to dissipate heat.
  • The maximum allowable voltage for the ACPL-C784-000E is 5.5V, exceeding which may cause permanent damage to the device.
  • To troubleshoot issues with the ACPL-C784-000E, check the input voltage, output load, and PCB layout for any errors or faults. Verify that the device is properly soldered and that there are no shorts or opens on the PCB.
  • Yes, the ACPL-C784-000E is compatible with lead-free soldering processes, but ensure that the soldering temperature and time are within the recommended specifications to prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACPL-C784-000E Overview

Use the download button to access the ACPL-C784-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-, or try a keyword search, such as Isolation Amplifiers
