A good PCB layout for the ACPL-K342-000E involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation of the ACPL-K342-000E in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
Common failure modes of the ACPL-K342-000E include overvoltage, overcurrent, and overheating. To mitigate these, ensure that the device is operated within its recommended specifications, use proper voltage regulation, and implement overcurrent protection and thermal monitoring.
To troubleshoot issues with the ACPL-K342-000E, start by verifying that the device is properly powered and configured. Check the input voltage, output voltage, and current consumption. Use an oscilloscope to analyze the output waveform and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the ACPL-K342-000E can be used in redundant or fault-tolerant system designs. However, it's essential to ensure that the device is properly configured and monitored to detect and respond to faults. Implementing redundant power supplies, using redundant ACPL-K342-000E devices, and incorporating fault detection and isolation mechanisms can help achieve high system availability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-K342-000E Overview

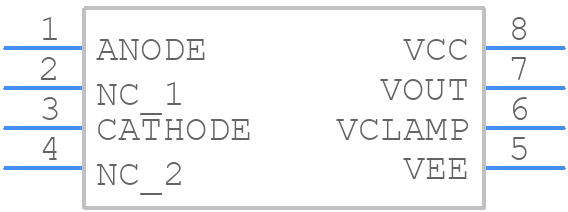

Use the download button to access the ACPL-K342-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as MOSFET Drivers
