A good PCB layout for the ACPL-K370-000E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation of the ACPL-K370-000E in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
The ACPL-K370-000E has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing to prevent damage to the device. This includes using ESD-safe materials, grounding straps, and wrist straps.
The ACPL-K370-000E is a general-purpose optocoupler and is not certified for use in safety-critical applications. If you need a safety-certified optocoupler, you should consider using a device that meets the relevant safety standards, such as IEC 60747-5-5 or UL 1577.
To troubleshoot issues with the ACPL-K370-000E, start by checking the power supply voltage, input signal, and output signal. Use an oscilloscope to verify the signal waveforms and check for any signs of signal distortion or noise. Also, ensure that the device is properly soldered and that there are no soldering defects.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-K370-000E Overview

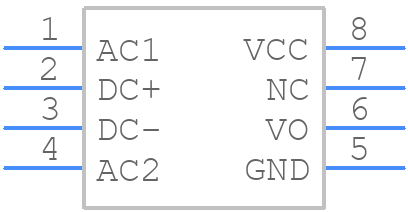

Use the download button to access the ACPL-K370-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Other Signal Circuits
