Part Image

ACPL-K376-000E - Avago Technologies

Description: Isolated Voltage/Current Detector

Download ECAD Model

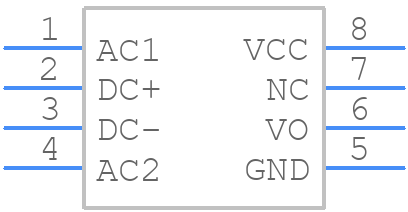

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

ACPL-K376-000E - Avago Technologies PCB footprint - Small Outline Packages - Small Outline Packages - SO-8 Package (SSO-8)
click to zoom

3D Models

ACPL-K376-000E - Avago Technologies  - 3D model - Small Outline Packages - SO-8 Package (SSO-8)
click to zoom

ACPL-K376-000E Details

  • Manufacturer Part Number:

    ACPL-K376-000E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP,

  • Pin Count:

    8

  • Reach Compliance Code:

    compliant

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Avago Technologies

  • Risk Rank:

    7.73

  • Samacsys Modified On:

    2020-08-25 06:27:04

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    6.807 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    3.607 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.85 mm

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

ACPL-K376-000E Overview

Use the download button to access the ACPL-K376-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-, or try a keyword search, such as Other Analog ICs
