A good PCB layout for the ACPL-M483-500E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device.
The maximum allowable voltage imbalance between the input and output sides of the ACPL-M483-500E is ±1 kV. Exceeding this limit can compromise the isolation barrier and affect the device's reliability.
While the ACPL-M483-500E is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 100 kHz. However, the device's performance may degrade at higher frequencies, and additional filtering or shielding may be required to ensure reliable operation.
To troubleshoot common issues with the ACPL-M483-500E, start by checking the input and output voltage levels, ensuring that they are within the recommended operating range. Also, verify that the input and output circuits are properly decoupled, and that the device is operated within its recommended temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-M483-500E Overview

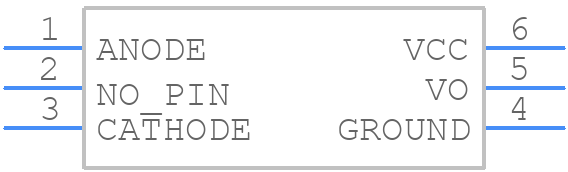

Use the download button to access the ACPL-M483-500E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Optocoupler
