A good PCB layout for the ACPL-P484-000E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device within its recommended operating temperature range.
The ACPL-P484-000E has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and installation. This includes using an ESD wrist strap or mat, storing the devices in anti-static packaging, and avoiding direct contact with the device pins.
The ACPL-P484-000E is not certified for use in safety-critical applications, such as in medical devices or automotive systems. However, it can be used in non-safety-critical applications, such as in industrial control systems or building automation systems.
It's recommended to use a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor as close to the device as possible to decouple the power supply. This helps to reduce noise and ensure stable operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-P484-000E Overview

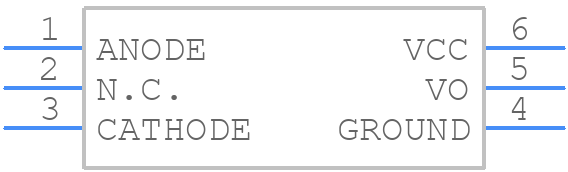

Use the download button to access the ACPL-P484-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Optocoupler
