A good PCB layout for the ACPL-W480-000E involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation of the ACPL-W480-000E in high-temperature environments, it's essential to provide adequate heat sinking, ensure good airflow, and follow the recommended operating temperature range of -40°C to 100°C. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
The ACPL-W480-000E has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. It's recommended to use an ESD wrist strap or mat, and to handle the device by the body or pins, rather than the leads.
The ACPL-W480-000E is not certified for use in safety-critical applications, such as those requiring IEC 61508 or ISO 26262 certification. However, it can be used in non-safety-critical applications where isolation is required, such as in industrial automation or medical devices.
To troubleshoot issues with the ACPL-W480-000E, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input and output signals using an oscilloscope, and check for any signs of overheating or physical damage. If the issue persists, consult the datasheet and application notes, or contact Broadcom Limited's technical support team.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-W480-000E Overview

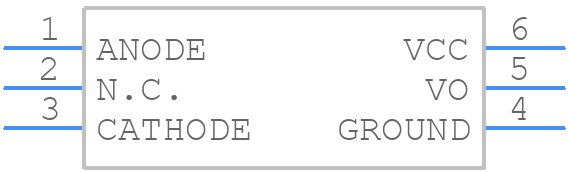

Use the download button to access the ACPL-W480-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Optocoupler
