ACPL-W481-000E - Avago Technologies

Description: Broadcom, ACPL-W481-000E DC Input Inverter, Totem-Pole Output Optocoupler, Surface Mount, 6-Pin SOIC

Download ACPL-W481-000E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

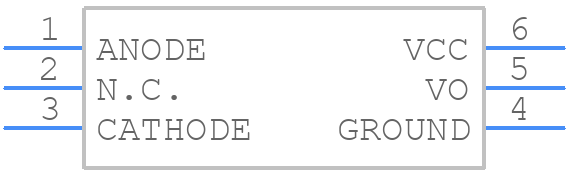

ACPL-W481-000E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
ACPL-W481-000E - Avago Technologies PCB footprint - Small Outline Packages - Small Outline Packages - SO-6 Package_
click to zoom
3D Models
ACPL-W481-000E - Avago Technologies - 3D model - Small Outline Packages - SO-6 Package_
click to zoom

ACPL-W481-000E Details

  • Manufacturer Part Number:

    ACPL-W481-000E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SOP-6

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    9

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.01 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.025 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.21 W

  • Response Time-Nom:

    3.5e-7 ns

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    20 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

ACPL-W481-000E Frequently Asked Questions (FAQs)

  • Broadcom recommends a PCB layout with a solid ground plane, minimal track length, and a 50-ohm transmission line impedance to ensure optimal performance and minimize signal distortion.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its specified operating temperature range.
  • The maximum allowable voltage on the VCC pin of the ACPL-W481-000E is 5.5V. Exceeding this voltage may damage the device or affect its reliability.
  • Yes, the ACPL-W481-000E is designed for galvanic isolation and can be used in systems that require electrical isolation between the input and output circuits.
  • The typical propagation delay of the ACPL-W481-000E is around 10-15 ns, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACPL-W481-000E Overview

Use the download button to access the ACPL-W481-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-, or try a keyword search, such as Optocoupler
