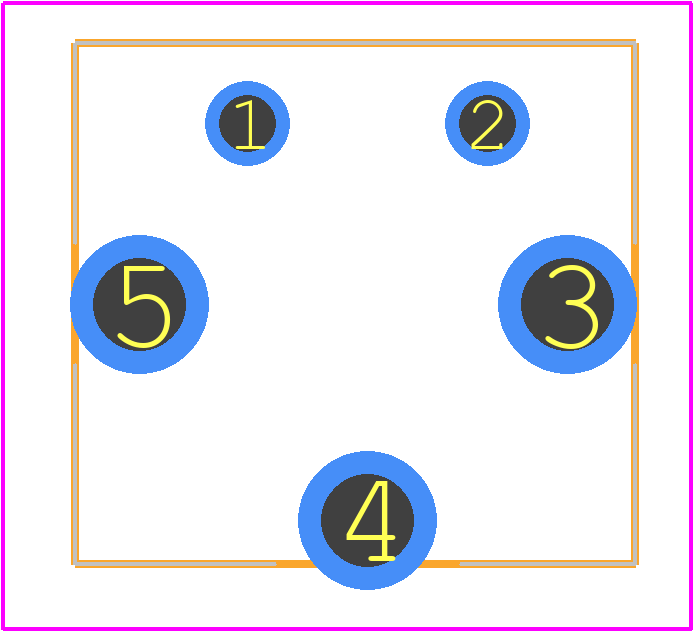

ACPW131 - Panasonic

ACPW131 Details

• Manufacturer Part Number:

  ACPW131

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.05

• Manufacturer:

  Panasonic Electronic Components

• Body Breadth:

  13 mm

• Body Height:

  9.5 mm

• Body Length or Diameter:

  14 mm

• Coil Current(DC)-Max:

  0.053 A

• Coil Operate Voltage(DC):

  7.2 V

• Coil Power:

  640 mW

• Coil Release Voltage(DC):

  1 V

• Coil Resistance:

  225 Ω

• Coil Voltage(DC)-Max:

  16 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact Current(DC)-Max:

  20 A

• Contact (DC) Max Rating R Load:

  20A@14VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(DC)-Max:

  14 V

• Contact/Output Supply Type:

  DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  SILVER ALLOY

• Input Switching Control Type:

  RANDOM

• Insulation Resistance:

  100000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  5

• Operate Time:

  10 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  TUBE

• Physical Dimension:

  14mm x 13mm x 9.5mm

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM C

• Relay Function:

  SPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Surface Mount:

  NO

• Terminal Length:

  0.0035052070104140214 inch

• Termination Type:

  SOLDER
