ACS709LLF-6BB-T - Allegro Microsystems

Description: SENSOR CURRENT HALL 6A AC/DC

Download ACS709LLF-6BB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

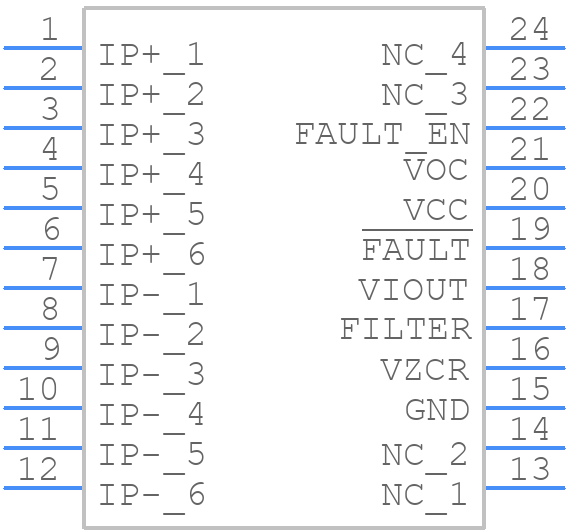

ACS709LLF-6BB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS709LLF-6BB-T - Allegro Microsystems PCB footprint - Other - Other - Package LF, 24-pin QSOP
click to zoom
3D Models
ACS709LLF-6BB-T - Allegro Microsystems - 3D model - Other - Package LF, 24-pin QSOP
click to zoom

ACS709LLF-6BB-T Details

  • Manufacturer Part Number:

    ACS709LLF-6BB-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, MO-137AE, QSOP-24

  • Pin Count:

    24

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    2

ACS709LLF-6BB-T Frequently Asked Questions (FAQs)

  • The ACS709LLF-6BB-T can measure currents up to ±50 A, with a maximum overcurrent detection threshold of ±100 A.
  • The ACS709LLF-6BB-T has a typical accuracy of ±1.5% at room temperature, and ±2.5% over the entire operating temperature range.
  • The ACS709LLF-6BB-T has a bandwidth of 120 kHz, making it suitable for high-frequency current measurements.
  • Yes, the ACS709LLF-6BB-T is rated for operation from -40°C to 150°C, making it suitable for high-temperature applications.
  • The ACS709LLF-6BB-T has an integrated overcurrent detection feature that can detect currents above a programmable threshold, and provide an alert signal to the system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS709LLF-6BB-T Overview

Use the download button to access the ACS709LLF-6BB-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS70, or try a keyword search, such as Other Sensors/Transducers
