ACS71020KMABTR-030B3-SPI - Allegro Microsystems

Description: Galvanically Isolated Power Monitoring IC

Download ACS71020KMABTR-030B3-SPI Model

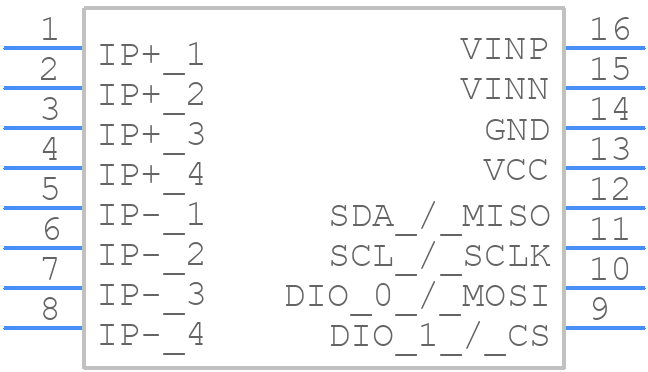

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ACS71020KMABTR-030B3-SPI - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - MA, 16-Pin SOICW(H=2.64mm)
click to zoom
3D Models
ACS71020KMABTR-030B3-SPI - Allegro Microsystems  - 3D model - Small Outline Packages - MA, 16-Pin SOICW(H=2.64mm)
click to zoom

ACS71020KMABTR-030B3-SPI Details

  • Manufacturer Part Number:

    ACS71020KMABTR-030B3-SPI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    14 mA

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.97 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ACS71020KMABTR-030B3-SPI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for decoupling and place it close to the device.
  • Calibration involves applying a known current to the device and adjusting the offset and gain registers to achieve accurate measurements. Refer to the application note AN296065 for a step-by-step calibration procedure.
  • The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • The ACS71020 has a built-in overcurrent detection feature. When an overcurrent condition is detected, the device sets the OCFAULT pin high. You can use this signal to trigger an interrupt or shut down the system to prevent damage.
  • Yes, the ACS71020 is compatible with 3.3V microcontrollers. The device's digital output is 3.3V-compatible, and the SPI interface can operate at 3.3V.
