ACS711ELCTR-12AB-T - Allegro Microsystems

Description: Hall-Effect Linear Current Sensor with Overcurrent Fault Output for <100 V Isolation Applications

Download ACS711ELCTR-12AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

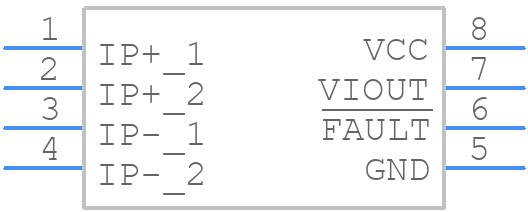

ACS711ELCTR-12AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS711ELCTR-12AB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LC 8-pin SOIC
click to zoom
3D Models
ACS711ELCTR-12AB-T - Allegro Microsystems - 3D model - Small Outline Packages - LC 8-pin SOIC
click to zoom

ACS711ELCTR-12AB-T Details

  • Manufacturer Part Number:

    ACS711ELCTR-12AB-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.5 mm

  • Body Length or Diameter:

    4.9 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    5.5 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Circuit Type:

    SINGLE-ENDED

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape/Style:

    RECTANGULAR

  • Response Time:

    4.6 µs

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

ACS711ELCTR-12AB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS711ELCTR-12AB-T is -40°C to 125°C.
  • The ACS711ELCTR-12AB-T does not require calibration. It is a ratiometric device, meaning that the output voltage is proportional to the supply voltage. However, you may need to adjust the gain and offset of the output signal to match your specific application.
  • The bandwidth of the ACS711ELCTR-12AB-T is 80 kHz. This means that the device can accurately measure currents up to 80 kHz.
  • Yes, the ACS711ELCTR-12AB-T can be used to measure AC currents. However, the device is optimized for DC current measurement, and the accuracy may degrade at high frequencies.
  • The power consumption of the ACS711ELCTR-12AB-T is typically 12.5 mW (VCC = 5 V, VOUT = 2.5 V).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS711ELCTR-12AB-T Overview

Use the download button to access the ACS711ELCTR-12AB-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS71, or try a keyword search, such as Other Sensors/Transducers
