ACS732KLATR-40AB-T - Allegro Microsystems

Description: 1 MHz Bandwidth, Galvanically Isolated Current Sensor IC

Download ACS732KLATR-40AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

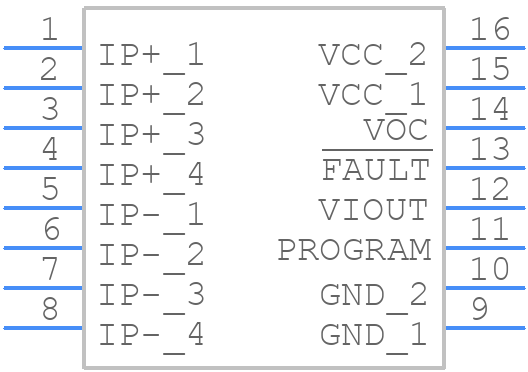

ACS732KLATR-40AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS732KLATR-40AB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LA, 16-Pin SOICW
click to zoom
3D Models
ACS732KLATR-40AB-T - Allegro Microsystems - 3D model - Small Outline Packages - LA, 16-Pin SOICW
click to zoom

ACS732KLATR-40AB-T Details

  • Manufacturer Part Number:

    ACS732KLATR-40AB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Date Of Intro:

    2018-01-15

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.35 mm

  • Body Length or Diameter:

    10.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

ACS732KLATR-40AB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS732KLATR-40AB-T is -40°C to 150°C.
  • The output voltage of the ACS732KLATR-40AB-T is ratiometric, meaning it scales with the supply voltage. You should use a voltage regulator to ensure a stable supply voltage to the device.
  • A good PCB layout for the ACS732KLATR-40AB-T involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the output traces to reduce noise and interference.
  • The ACS732KLATR-40AB-T does not require calibration. It is a ratiometric device, and the output voltage is proportional to the input current. However, you may need to adjust the gain and offset of the output signal depending on your specific application.
  • The typical current consumption of the ACS732KLATR-40AB-T is around 12 mA, but this can vary depending on the operating conditions and the output load.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS732KLATR-40AB-T Overview

Use the download button to access the ACS732KLATR-40AB-T schematic symbol, PCB footprint, and 3D model.
