ACS732KLATR-65AB-T - Allegro Microsystems

Description: 1 MHz Bandwidth, Galvanically Isolated Current Sensor IC

Download ACS732KLATR-65AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

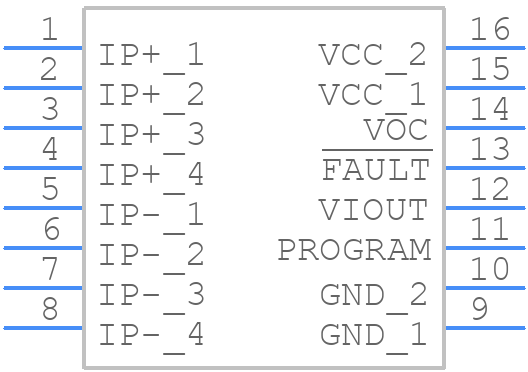

ACS732KLATR-65AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS732KLATR-65AB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LA, 16-Pin SOICW
click to zoom
3D Models
ACS732KLATR-65AB-T - Allegro Microsystems - 3D model - Small Outline Packages - LA, 16-Pin SOICW
click to zoom

ACS732KLATR-65AB-T Details

  • Manufacturer Part Number:

    ACS732KLATR-65AB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Date Of Intro:

    2018-12-10

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.35 mm

  • Body Length or Diameter:

    10.3 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

ACS732KLATR-65AB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS732KLATR-65AB-T is -40°C to 150°C.
  • The output voltage of the ACS732KLATR-65AB-T is ratiometric, meaning it scales with the supply voltage. It's recommended to use a voltage regulator to maintain a stable supply voltage to ensure accurate output.
  • A good PCB layout for the ACS732KLATR-65AB-T involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the output traces to reduce noise and interference.
  • Calibration of the ACS732KLATR-65AB-T involves applying a known current to the device and adjusting the output voltage to match the expected value. The device can be calibrated using an external resistor or through software calibration.
  • The typical current consumption of the ACS732KLATR-65AB-T is around 10mA, but this can vary depending on the operating conditions and output voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS732KLATR-65AB-T Overview

Use the download button to access the ACS732KLATR-65AB-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS73, or try a keyword search, such as Other Sensors/Transducers
