ACS732KLATR-65AU-T - Allegro Microsystems

Description: 1 MHz Bandwidth, Galvanically Isolated Current Sensor IC

Download ACS732KLATR-65AU-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

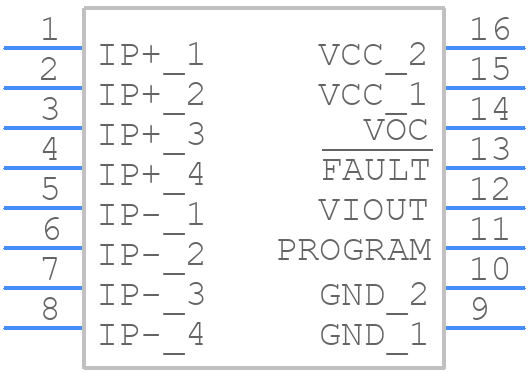

ACS732KLATR-65AU-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS732KLATR-65AU-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LA, 16-Pin SOICW
click to zoom
3D Models
ACS732KLATR-65AU-T - Allegro Microsystems - 3D model - Small Outline Packages - LA, 16-Pin SOICW
click to zoom

ACS732KLATR-65AU-T Details

  • Manufacturer Part Number:

    ACS732KLATR-65AU-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Date Of Intro:

    2018-12-10

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.35 mm

  • Body Length or Diameter:

    10.3 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

ACS732KLATR-65AU-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS732KLATR-65AU-T is -40°C to 150°C.
  • The output voltage of the ACS732KLATR-65AU-T is ratiometric, meaning it scales with the supply voltage. It's recommended to use a voltage regulator to maintain a stable supply voltage to ensure accurate output voltage.
  • A good PCB layout for the ACS732KLATR-65AU-T should minimize noise and ensure good thermal dissipation. Keep the device away from high-current paths, and use a solid ground plane to reduce noise. Also, ensure good thermal conductivity by using thermal vias and a heat sink if necessary.
  • The ACS732KLATR-65AU-T does not require calibration. It is a ratiometric device, and its output voltage is proportional to the input current. However, you may need to adjust the gain and offset of the output signal to match your specific application requirements.
  • The ACS732KLATR-65AU-T can measure currents up to 65 A. However, the device can be damaged if the current exceeds 100 A, so it's essential to ensure that the current does not exceed the maximum rating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS732KLATR-65AU-T Overview

Use the download button to access the ACS732KLATR-65AU-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS73, or try a keyword search, such as Other Sensors/Transducers
