ACS732KMATR-65AB-T - Allegro Microsystems

Description: 1 MHz Bandwidth, Galvanically Isolated Current Sensor IC

Download ACS732KMATR-65AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

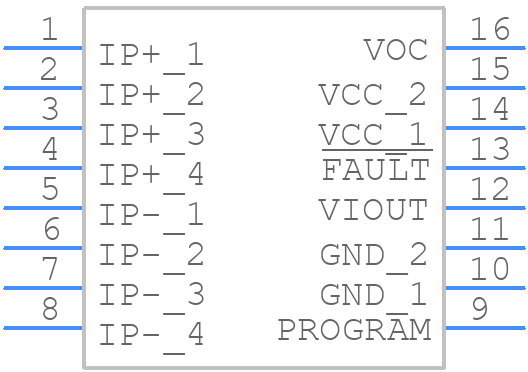

ACS732KMATR-65AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS732KMATR-65AB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - SOICW-16_2021
click to zoom
3D Models
ACS732KMATR-65AB-T - Allegro Microsystems - 3D model - Small Outline Packages - SOICW-16_2021
click to zoom

ACS732KMATR-65AB-T Details

  • Manufacturer Part Number:

    ACS732KMATR-65AB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.34 mm

  • Body Length or Diameter:

    10.21 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

ACS732KMATR-65AB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS732KMATR-65AB-T is -40°C to 150°C.
  • The ACS732KMATR-65AB-T has an internal overcurrent detection circuit that limits the output current to prevent damage to the device.
  • The typical response time for the ACS732KMATR-65AB-T is 2.5 μs.
  • Yes, the ACS732KMATR-65AB-T is designed to operate in high-vibration environments and meets the requirements of automotive and industrial applications.
  • The ACS732KMATR-65AB-T has built-in EMI filtering and shielding to minimize the effects of electromagnetic interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS732KMATR-65AB-T Overview

Use the download button to access the ACS732KMATR-65AB-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS73, or try a keyword search, such as Other Sensors/Transducers
