ACS733KLATR-20AB-T-H - Allegro Microsystems

Description: 1 MHz Bandwidth, Galvanically Isolated Current Sensor IC

Download ACS733KLATR-20AB-T-H Model

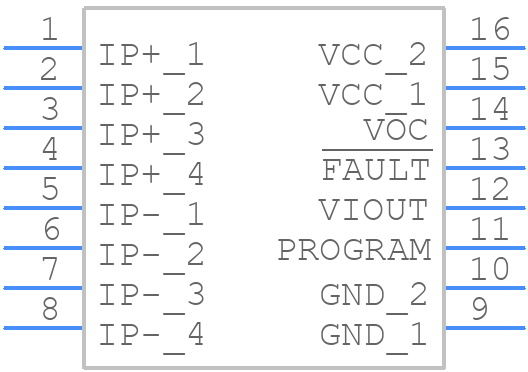

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ACS733KLATR-20AB-T-H - Allegro Microsystems PCB footprint - Other - Other - Package LA, 16-Pin SOICW
click to zoom
3D Models
ACS733KLATR-20AB-T-H - Allegro Microsystems  - 3D model - Other - Package LA, 16-Pin SOICW
click to zoom

ACS733KLATR-20AB-T-H Details

  • Manufacturer Part Number:

    ACS733KLATR-20AB-T-H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Date Of Intro:

    2020-06-29

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.35 mm

  • Body Length or Diameter:

    10.3 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.46 V

  • Supply Voltage-Min:

    3.14 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

ACS733KLATR-20AB-T-H Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS733KLATR-20AB-T-H is -40°C to 150°C.
  • The ACS733KLATR-20AB-T-H does not require calibration. It is a ratiometric device, meaning that the output voltage is proportional to the supply voltage, and the sensitivity is fixed. However, you may need to adjust the gain and offset of your system to optimize performance.
  • Allegro recommends a 4-layer PCB with a solid ground plane and a separate power plane for the ACS733KLATR-20AB-T-H. Keep the device away from high-current carrying traces and ensure good thermal conductivity to the PCB.
  • Yes, the ACS733KLATR-20AB-T-H is designed to withstand high-vibration environments. However, you should ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress.
  • Use a shielded cable or a twisted pair to connect the ACS733KLATR-20AB-T-H to your system. Ensure good grounding and use EMI filters or shielding on your PCB to minimize electromagnetic radiation.
