ACS733KMATR-65AB-T - Allegro Microsystems

Description: 1 MHz Bandwidth, Galvanically Isolated Current Sensor IC

Download ACS733KMATR-65AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

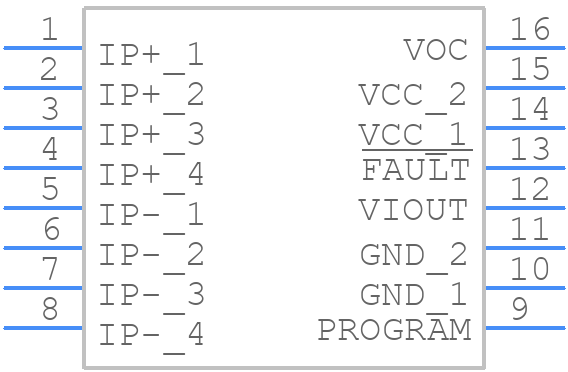

ACS733KMATR-65AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS733KMATR-65AB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - MA, 16-Pin SOICW
click to zoom
3D Models
ACS733KMATR-65AB-T - Allegro Microsystems - 3D model - Small Outline Packages - MA, 16-Pin SOICW
click to zoom

ACS733KMATR-65AB-T Details

  • Manufacturer Part Number:

    ACS733KMATR-65AB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.34 mm

  • Body Length or Diameter:

    10.21 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.46 V

  • Supply Voltage-Min:

    3.14 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)
