ACS756KCB-050B-PFF-T - Allegro Microsystems

Description: Fully Integrated, Hall-Effect-Based Linear Current Sensor IC with 3 kVRMS Voltage Isolation and a Low-Resistance Current Conductor

Download ACS756KCB-050B-PFF-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ACS756KCB-050B-PFF-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints

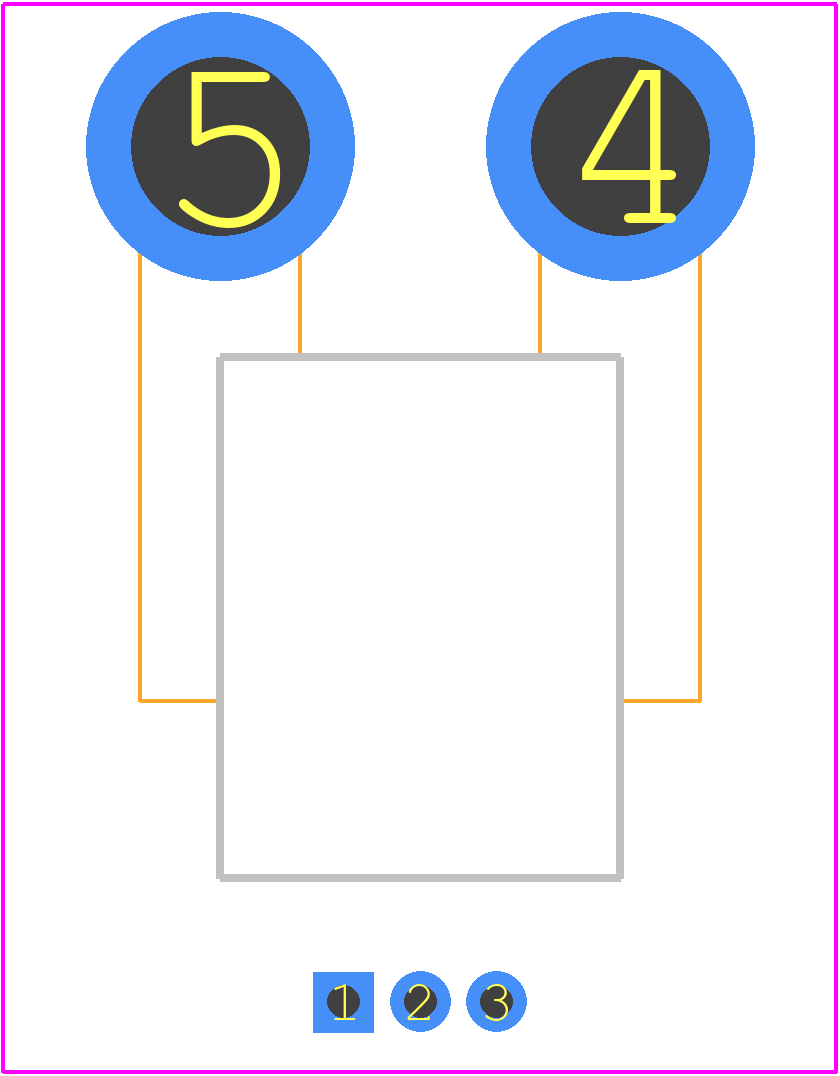

ACS756KCB-050B-PFF-T - Allegro Microsystems PCB footprint - Other - Other - PFF_2021_NOSLOT
click to zoom
3D Models
ACS756KCB-050B-PFF-T - Allegro Microsystems - 3D model - Other - PFF_2021_NOSLOT
click to zoom

ACS756KCB-050B-PFF-T Details

  • Manufacturer Part Number:

    ACS756KCB-050B-PFF-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    10 mm

  • Body Height:

    7 mm

  • Body Length or Diameter:

    13 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

ACS756KCB-050B-PFF-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS756KCB-050B-PFF-T is -40°C to 150°C.
  • The output voltage of the ACS756KCB-050B-PFF-T is a differential output, and it should be connected to a differential amplifier or an analog-to-digital converter (ADC) to process the signal.
  • The recommended PCB layout for the ACS756KCB-050B-PFF-T involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the output traces to reduce noise and electromagnetic interference (EMI).
  • The ACS756KCB-050B-PFF-T does not require calibration, as it is a ratiometric device that provides an output voltage proportional to the input current. However, the device may require offset and gain adjustments depending on the specific application.
  • The typical current consumption of the ACS756KCB-050B-PFF-T is 12 mA, but this can vary depending on the operating conditions and the output voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS756KCB-050B-PFF-T Overview

Use the download button to access the ACS756KCB-050B-PFF-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS75, or try a keyword search, such as Other Sensors/Transducers
