ACS770ECB-400B-PFF-T - Allegro Microsystems

Description: High Accuracy, Hall-Effect-Based, 200 kHz Bandwidth, Galvanically Isolated Current Sensor IC with 100 Current Conductor

Download ACS770ECB-400B-PFF-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

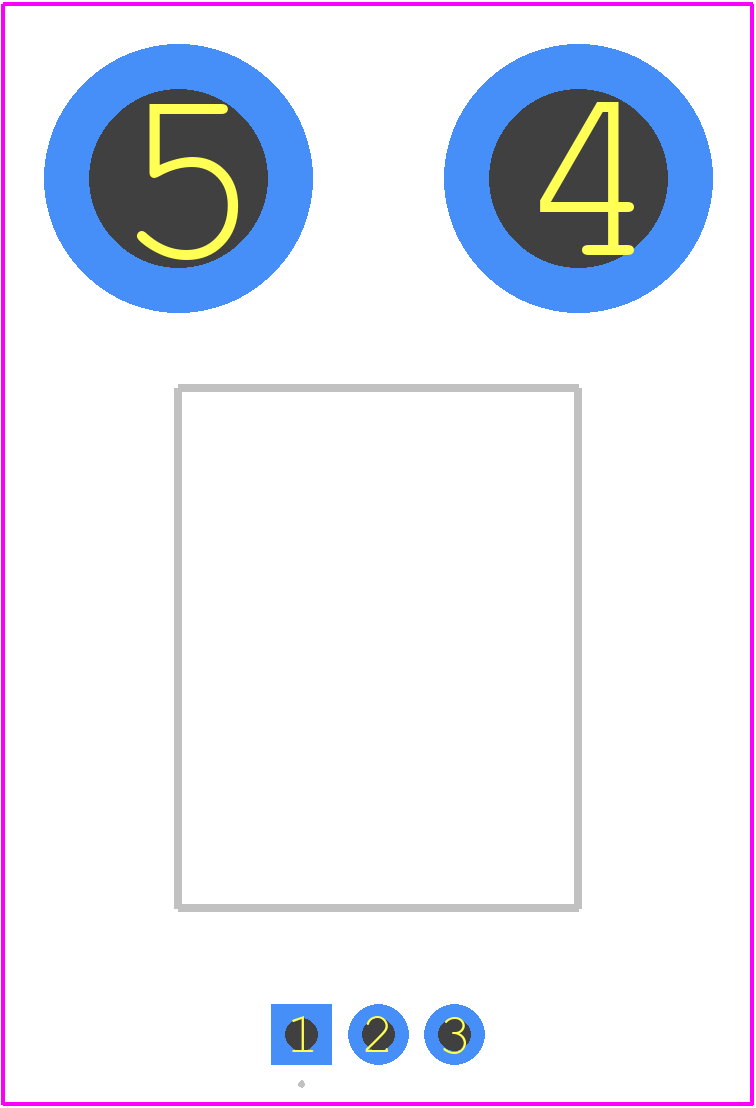

ACS770ECB-400B-PFF-T - Allegro Microsystems PCB footprint - Other - Other - 5-Pin, Leadform PFF
click to zoom
3D Models
ACS770ECB-400B-PFF-T - Allegro Microsystems  - 3D model - Other - 5-Pin, Leadform PFF
click to zoom

ACS770ECB-400B-PFF-T Details

  • Manufacturer Part Number:

    ACS770ECB-400B-PFF-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

ACS770ECB-400B-PFF-T Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout in their application note AN295047, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and accuracy.
  • Calibration involves adjusting the zero-current output voltage and sensitivity to match the specific requirements of your application. Allegro provides a calibration procedure in their application note AN295047, which includes steps for determining the optimal calibration coefficients.
  • The maximum allowable voltage on the VCC pin is 5.5V, as specified in the datasheet. Exceeding this voltage can damage the device.
  • The ACS770ECB-400B-PFF-T is rated for operation up to 150°C, but the accuracy and linearity of the device may degrade at high temperatures. Allegro provides thermal derating curves in the datasheet to help designers estimate the device's performance at elevated temperatures.
  • Allegro recommends using proper EMI shielding and filtering techniques, such as using a metal shield around the device, adding EMI filters to the power supply, and using twisted-pair wiring for the output signals. Additionally, the device's output signals should be terminated with a 1 kΩ resistor to reduce EMI emissions.
