Allegro provides a recommended PCB layout in their application note AN295047, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and accuracy.
Calibration is not typically required for the ACS772KCB-150B-SMT-T, as it is a pre-calibrated device. However, if you need to adjust the offset or gain, Allegro provides a calibration procedure in their application note AN295047, which involves applying a known current to the device and measuring the output voltage.
The ACS772KCB-150B-SMT-T has an operating temperature range of -40°C to 150°C, but it's recommended to derate the device's accuracy and performance above 125°C. Consult the datasheet for more information on temperature-related specifications.
Yes, the ACS772KCB-150B-SMT-T is designed to withstand high-vibration environments. Allegro has tested the device to survive vibrations up to 20 G's, but it's recommended to consult the datasheet and application notes for specific vibration-related specifications and guidelines.
To protect the ACS772KCB-150B-SMT-T from EMI, Allegro recommends using proper PCB layout techniques, such as separating analog and digital traces, using ground planes, and adding EMI filters or shielding. Consult the datasheet and application notes for more information on EMI protection.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACS772KCB-150B-SMT-T Overview

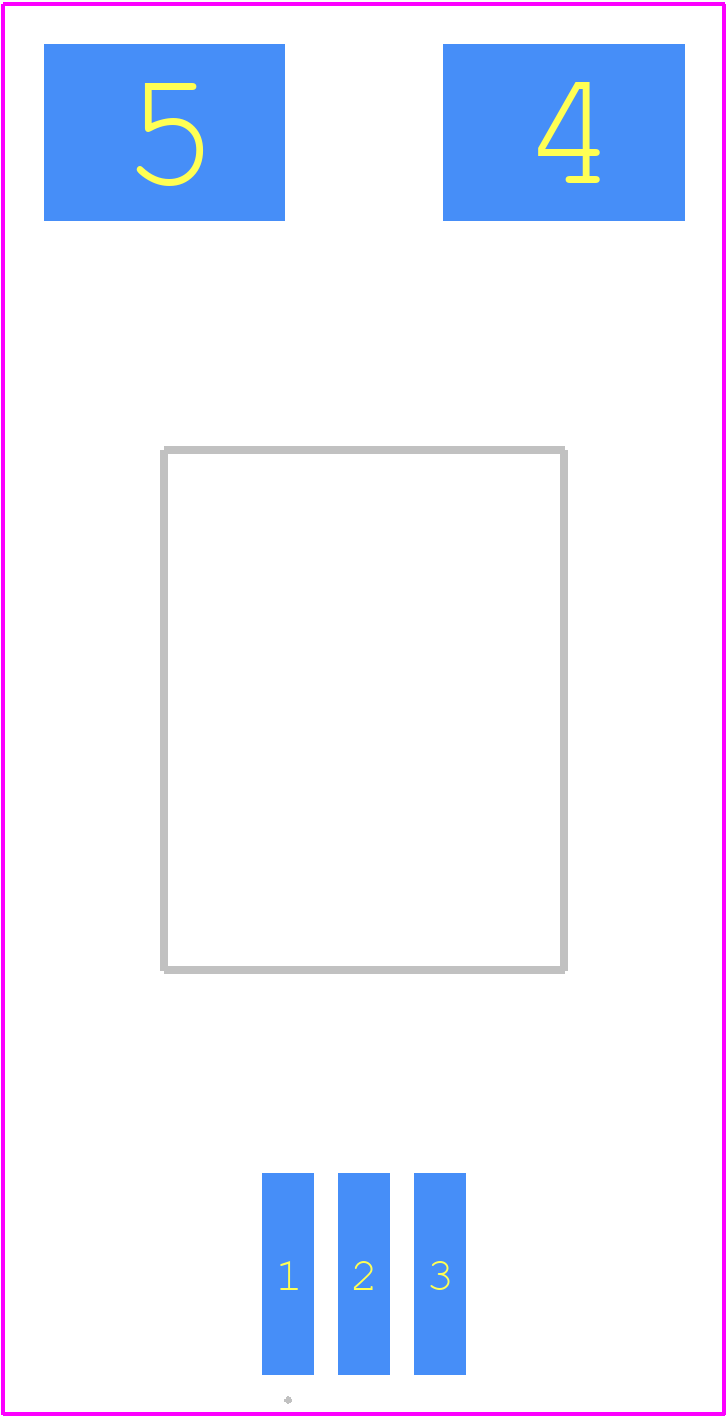

Use the download button to access the ACS772KCB-150B-SMT-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS77,
or try a keyword search, such as Other Sensors/Transducers
