The maximum operating temperature range for the ACS772LCB-050B-SMT-T is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within the -20°C to 85°C range for optimal performance and reliability.
The ACS772LCB-050B-SMT-T outputs a differential voltage signal that requires a differential amplifier or a instrumentation amplifier to condition the signal. The output voltage range is ±50 mV, and it's recommended to use a gain stage to amplify the signal to a level suitable for ADC conversion or other processing.
The ACS772LCB-050B-SMT-T is a surface-mount device, and it's recommended to follow Allegro's recommended PCB layout guidelines to ensure optimal thermal performance and minimize electromagnetic interference (EMI). A thermal pad on the bottom of the device should be connected to a copper plane on the PCB to dissipate heat. Additionally, a low-ESR capacitor should be placed close to the device to filter the power supply.
The ACS772LCB-050B-SMT-T requires calibration to ensure accurate current measurement. Calibration involves applying a known current to the device and adjusting the output voltage to match the expected value. Allegro provides a calibration procedure in the datasheet, which involves applying a series of known currents and measuring the output voltage. The calibration process can be automated using a calibration software or performed manually using a precision current source and a voltmeter.
The typical response time of the ACS772LCB-050B-SMT-T is 2.5 μs, which is the time it takes for the device to settle to within 1% of the final value after a step change in current. This response time is suitable for most industrial and automotive applications, but may not be sufficient for high-speed applications such as power supplies or motor control.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACS772LCB-050B-SMT-T Overview

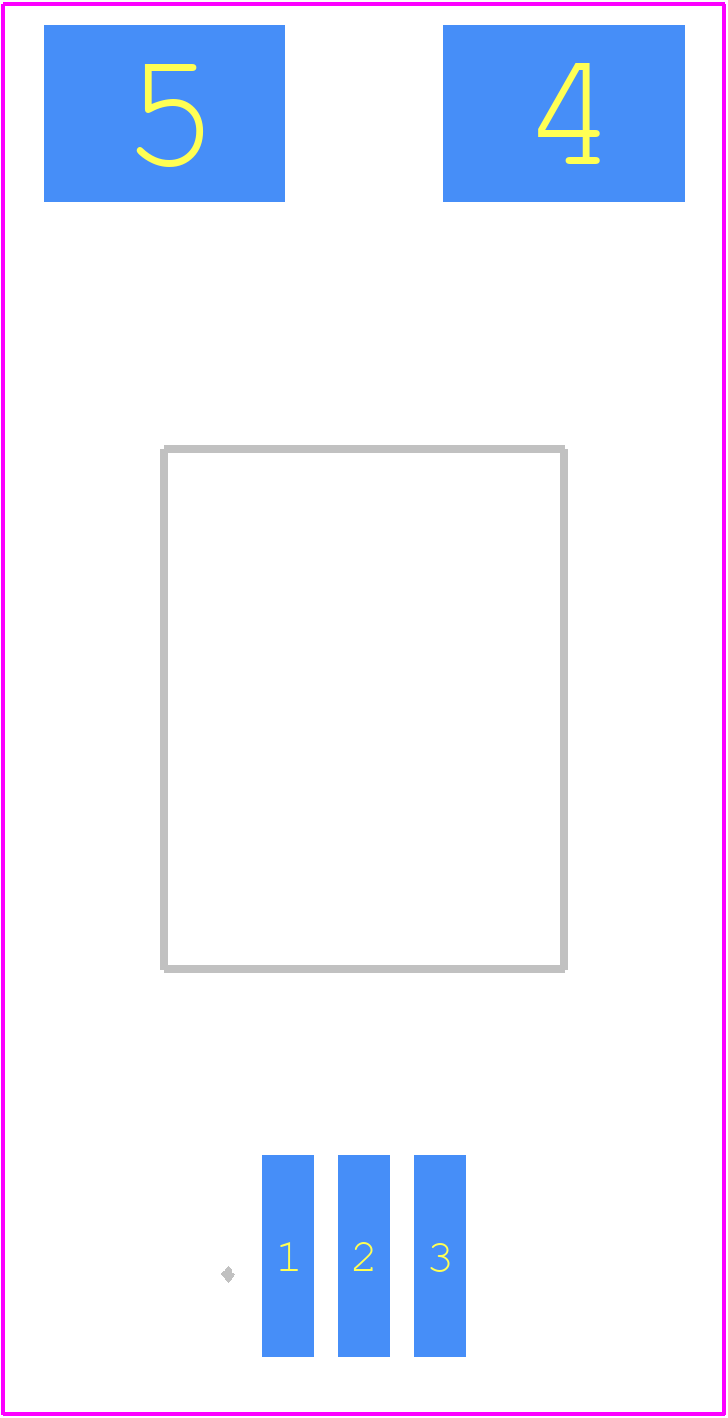

Use the download button to access the ACS772LCB-050B-SMT-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS77,
or try a keyword search, such as Other Sensors/Transducers
