ACS773KCB-150B-PFF-T - Allegro Microsystems

Description: 200kHz, 1.5% Max Tolerance, 100 µΩ Internal Resistance Module-alternative Current Sensor for High Current and High Voltage Applications

Download ACS773KCB-150B-PFF-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ACS773KCB-150B-PFF-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints

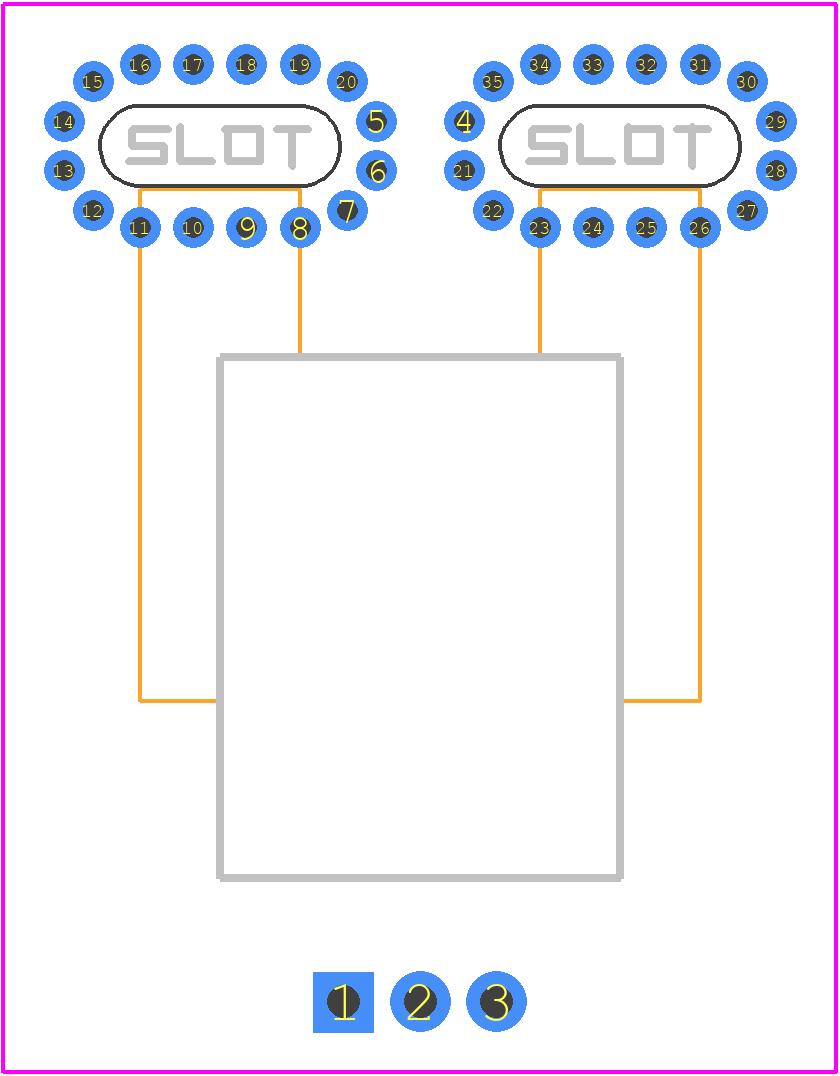

ACS773KCB-150B-PFF-T - Allegro Microsystems PCB footprint - Other - Other - PFF_2021
click to zoom
3D Models
ACS773KCB-150B-PFF-T - Allegro Microsystems - 3D model - Other - PFF_2021
click to zoom

ACS773KCB-150B-PFF-T Details

  • Manufacturer Part Number:

    ACS773KCB-150B-PFF-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-5

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    10 mm

  • Body Height:

    7 mm

  • Body Length or Diameter:

    13 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

ACS773KCB-150B-PFF-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS773KCB-150B-PFF-T is -40°C to 150°C.
  • The ACS773KCB-150B-PFF-T does not require calibration. It is a ratiometric device, meaning that the output voltage is proportional to the supply voltage, and the sensitivity is fixed.
  • A good PCB layout for the ACS773KCB-150B-PFF-T should include a solid ground plane, separate analog and digital grounds, and a low-impedance path for the output signal. Additionally, the device should be placed away from high-current carrying traces and other noise sources.
  • Yes, the ACS773KCB-150B-PFF-T is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and soldering techniques to ensure the device is securely attached to the PCB.
  • To protect the ACS773KCB-150B-PFF-T from EMI, use a shielded cable for the output signal, keep the device away from high-frequency sources, and use a ferrite bead or common-mode choke on the output signal line.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS773KCB-150B-PFF-T Overview

Use the download button to access the ACS773KCB-150B-PFF-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS77, or try a keyword search, such as Other Sensors/Transducers
