Part Image

ACS773LCB-050B-SMT-T - Allegro Microsystems

Description: 200kHz, 1.5% Max Tolerance, 100 µΩ Internal Resistance Module-alternative Current Sensor for High Current and High Voltage Applications

Download ACS773LCB-050B-SMT-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ACS773LCB-050B-SMT-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints

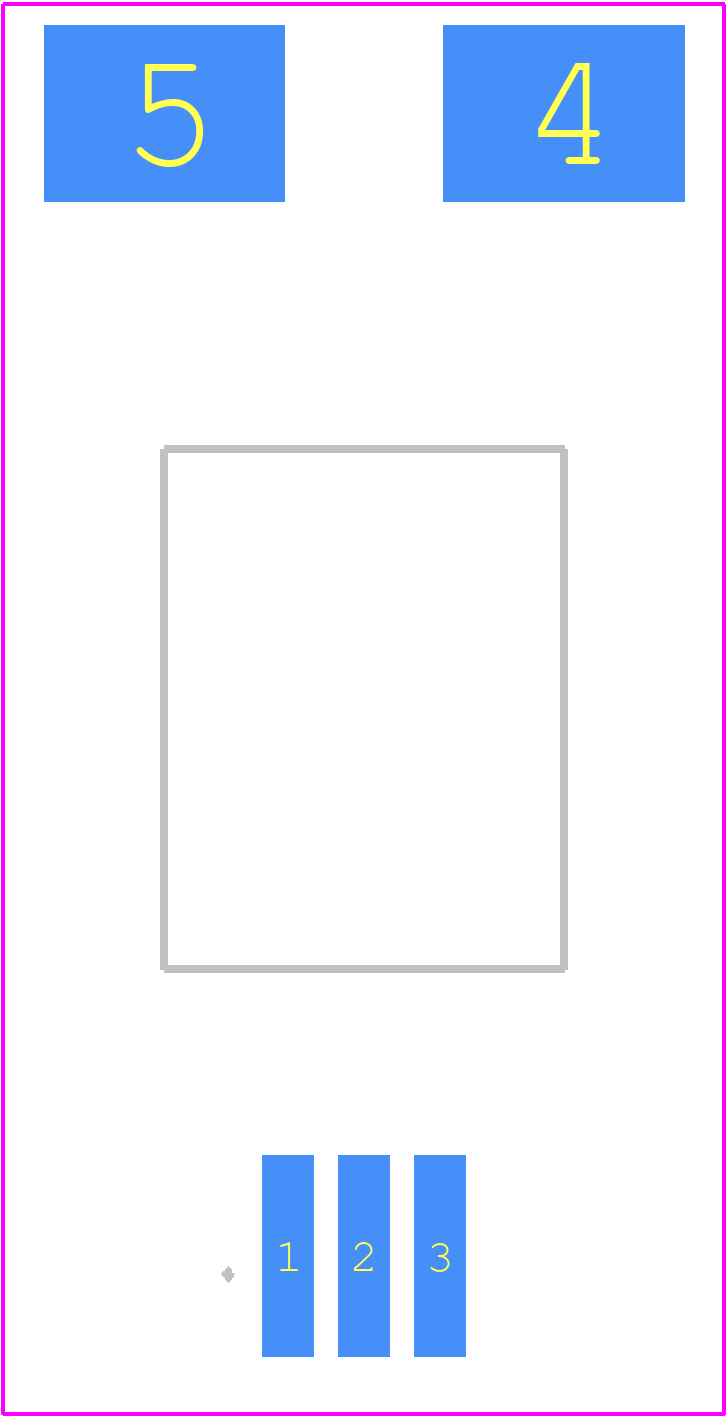

ACS773LCB-050B-SMT-T - Allegro Microsystems PCB footprint - Other - Other - SMT
click to zoom
3D Models
ACS773LCB-050B-SMT-T - Allegro Microsystems - 3D model - Other - SMT
click to zoom

ACS773LCB-050B-SMT-T Details

  • Manufacturer Part Number:

    ACS773LCB-050B-SMT-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-5

  • Date Of Intro:

    2019-11-07

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    10 mm

  • Body Height:

    7 mm

  • Body Length or Diameter:

    13 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

ACS773LCB-050B-SMT-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS773LCB-050B-SMT-T is -40°C to 150°C.
  • The ACS773LCB-050B-SMT-T has a typical current measurement accuracy of ±1.5% at 25°C, and ±2.5% over the entire operating temperature range.
  • The response time of the ACS773LCB-050B-SMT-T is typically 1 μs to 2 μs, depending on the bandwidth setting.
  • Yes, the ACS773LCB-050B-SMT-T can measure both AC and DC currents, with a bandwidth of up to 80 kHz.
  • The power consumption of the ACS773LCB-050B-SMT-T is typically 12.5 mW at 5 V, and 25 mW at 3.3 V.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS773LCB-050B-SMT-T Overview

Use the download button to access the ACS773LCB-050B-SMT-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS77, or try a keyword search, such as Other Sensors/Transducers
