ACSL-6410-06TE - Avago Technologies

Description: High Speed Optocouplers 3.0V - 5.5V 15MBd

Download ACSL-6410-06TE Model
Schematic
symbols

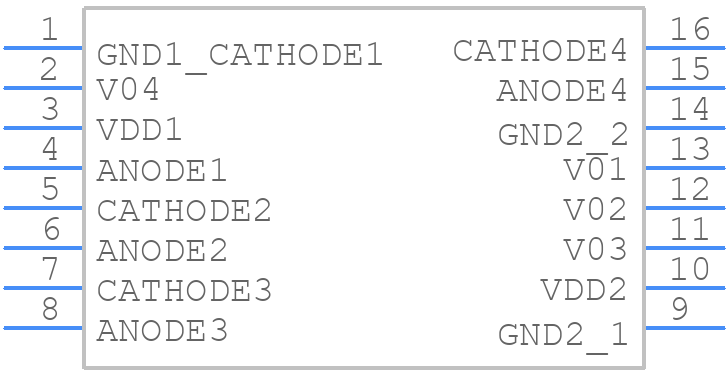

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ACSL-6410-06TE - Avago Technologies PCB footprint - Small Outline Packages - Small Outline Packages - 564
click to zoom
3D Models
ACSL-6410-06TE - Avago Technologies  - 3D model - Small Outline Packages - 564
click to zoom

ACSL-6410-06TE Details

  • Manufacturer Part Number:

    ACSL-6410-06TE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SOP-16

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    7

  • Additional Feature:

    TTL COMPATIBLE, UL RECOGNIZED, VDE APPROVED

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Data Rate-Nom:

    15 MBps

  • Forward Current-Max:

    0.015 A

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    4

  • Number of Functions:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.26 W

  • Response Time-Nom:

    1e-7 ns

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN
