Part Image

ACSL-7210-06RE - Avago Technologies

Description: OptoCoupler 2-CH 8-Pin SO Tube - Bulk Dual-Channel (Bidirectional) 25-MBd CMOS Buffered Input Digital Optocoupler

Download ACSL-7210-06RE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

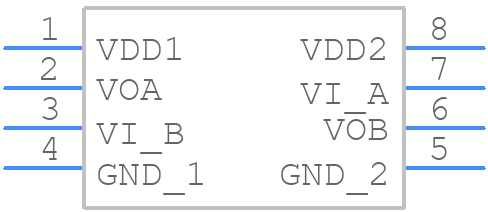

ACSL-7210-06RE - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
ACSL-7210-06RE - Avago Technologies PCB footprint - Small Outline Packages - Small Outline Packages - ACSL-7210 SO-8
click to zoom
3D Models
ACSL-7210-06RE - Avago Technologies - 3D model - Small Outline Packages - ACSL-7210 SO-8
click to zoom

ACSL-7210-06RE Details

  • Manufacturer Part Number:

    ACSL-7210-06RE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    9

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    25 MBps

  • Forward Current-Max:

    0.00001 A

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.01 A

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Supply Voltage-Min:

    3 V

  • Terminal Finish:

    TIN

ACSL-7210-06RE Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ACSL-7210-06RE is -40°C to 85°C.
  • To ensure reliability in high-temperature applications, it is recommended to follow proper thermal design and management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range.
  • The maximum current rating for the ACSL-7210-06RE is 1A per channel, with a total current limit of 2A for the entire device.
  • To configure the ACSL-7210-06RE for low-power operation, use the device's power-saving features, such as the low-power mode, and optimize the device's operating frequency and voltage supply to minimize power consumption.
  • The typical rise and fall time for the ACSL-7210-06RE is 10ns and 15ns, respectively.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACSL-7210-06RE Overview

Use the download button to access the ACSL-7210-06RE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACSL-, or try a keyword search, such as Optocoupler
