ACT8846QM460-T footprint, schematic symbol and 3D model by Qorvo

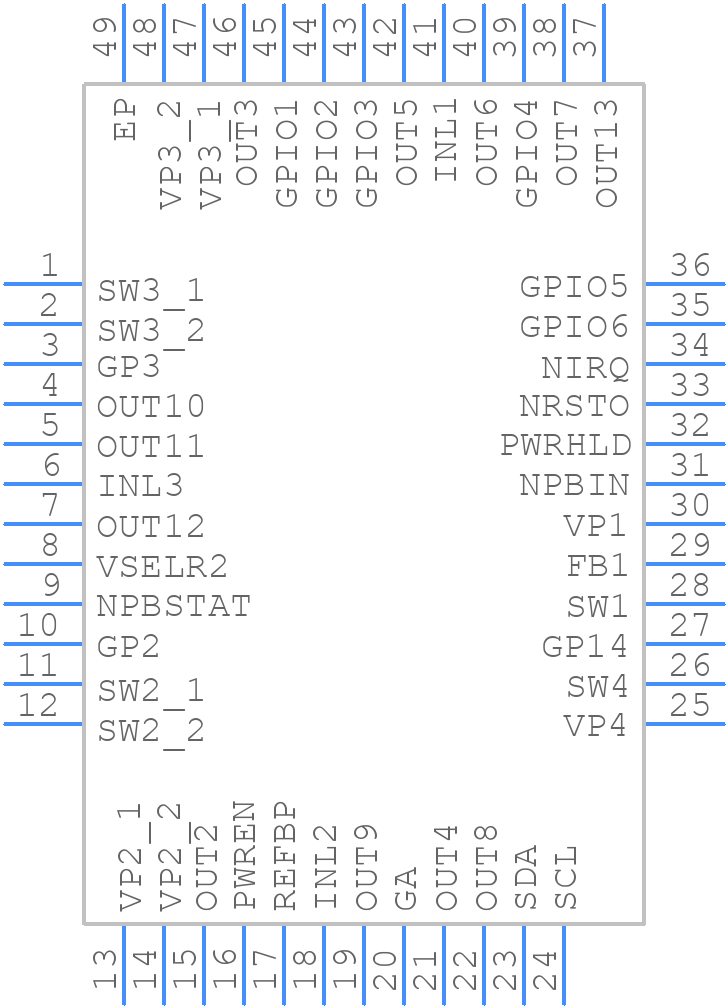

Symbol

click to zoom

PCB Footprints

ACT8846QM460-T - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Thin - QFN (TQFN66-48)

click to zoom

3D Models

ACT8846QM460-T - Qorvo - 3D model - Quad Flat No-Lead - Thin - QFN (TQFN66-48)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ACT8846QM460-T
Part Number ACT8846QM460-T
Manufacturer Qorvo
Pin Count 49
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - Thin - QFN (TQFN66-48)
Released Date Jul 29, 2021
Last Modified Date Feb 19, 2025 12:06 PM UTC
Pinout / Pin List Click Here (Member Only)

ACT8846QM460-T Details

Manufacturer Part Number:
ACT8846QM460-T
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
Package Description:
TQFN-48
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
20 Weeks
Date Of Intro:
2019-09-11
Manufacturer:
Qorvo
YTEOL:
1
Adjustable Threshold:
YES
Analog IC - Other Type:
POWER SUPPLY MANAGEMENT CIRCUIT
JESD-30 Code:
S-XQCC-N48
Length:
6 mm
Number of Channels:
19
Number of Functions:
1
Number of Terminals:
48
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC48,.24SQ,16
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
0.8 mm
Supply Current-Max (Isup):
12 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
3.6 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Width:
6 mm

ACT8846QM460-T Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to ensure efficient heat dissipation.
Use a combination of capacitors and inductors to filter the output voltage. A 10uF ceramic capacitor and a 1uH inductor are recommended. The output filter should be placed close to the device to minimize noise and EMI.
A 10uF to 22uF ceramic capacitor (X5R or X7R dielectric) is recommended for the input capacitor. The capacitor should be placed close to the device's input pins to minimize noise and EMI.
Monitor the device's junction temperature, input voltage, and output current to ensure they are within the recommended operating ranges. Use thermal monitoring and overcurrent protection circuits to prevent damage to the device.
The enable pin should be connected to a 10kΩ to 100kΩ pull-up resistor to ensure proper operation. The enable pin should be placed close to the device and away from noisy signals to minimize interference.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ACT8846QM460-T Overview

Use the download button to access the ACT8846QM460-T schematic symbol, PCB footprint, and 3D model.
