ACTBPCH4 - Panasonic

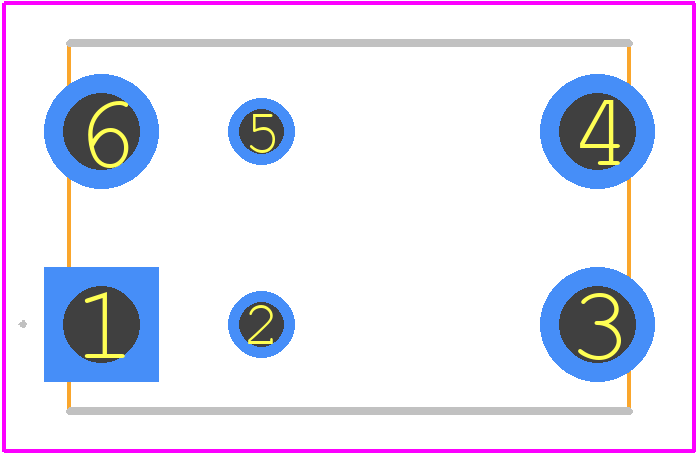

ACTBPCH4 Details

• Manufacturer Part Number:

  ACTBPCH4

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.05

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  6

• Body Breadth:

  9.2 mm

• Body Height:

  14 mm

• Body Length or Diameter:

  14 mm

• Coil Current(DC)-Max:

  0.04 A

• Coil Operate Voltage(DC):

  7 V

• Coil Power:

  480 mW

• Coil Release Voltage(DC):

  0.5 V

• Coil Resistance:

  300 Ω

• Coil Voltage(DC)-Max:

  16 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact Current(DC)-Max:

  30 A

• Contact (DC) Max Rating R Load:

  30A@14VDC

• Contact Resistance:

  50 mΩ

• Contact Voltage(DC)-Max:

  14 V

• Contact/Output Supply Type:

  DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Alloy

• End Contact Plating:

  COPPER

• Input Switching Control Type:

  Random

• Insulation Resistance:

  100000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  6

• Operate Time:

  10 ms

• Operating Temperature-Max:

  110 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  14mm x 9.2mm x 14mm

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM A

• Relay Function:

  SPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Surface Mount:

  NO

• Terminal Length:

  0.0029972059944119887 inch

• Termination Type:

  SOLDER
