ACTP512 - Panasonic

Description: RELAY AUTOMOTIVE SPDTX2 30A 12V

Download ACTP512 Model

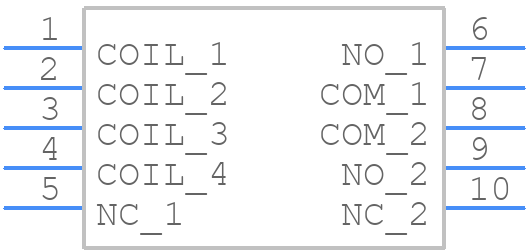

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

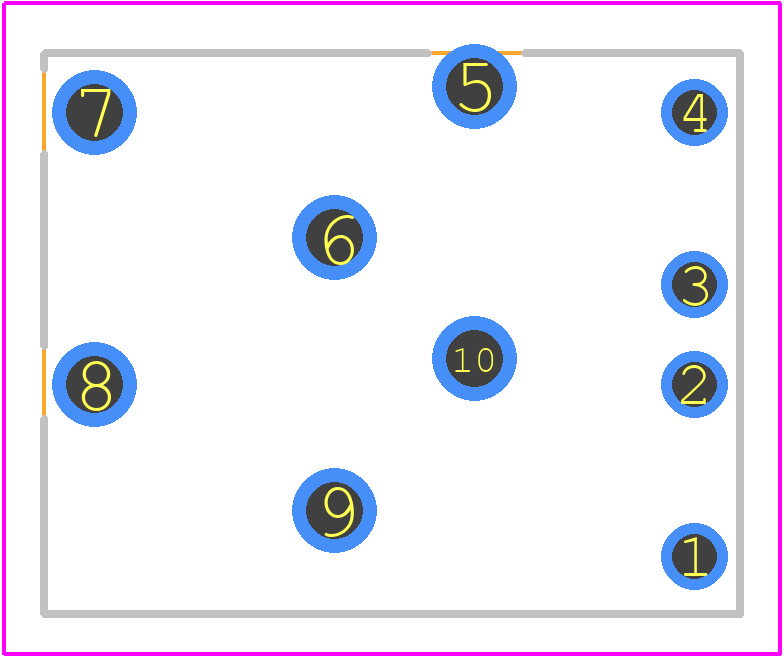

PCB Footprints
ACTP512 - Panasonic PCB footprint - Other - Other - ACTP512-4
click to zoom
3D Models
ACTP512 - Panasonic  - 3D model - Other - ACTP512-4
click to zoom

ACTP512 Details

  • Manufacturer Part Number:

    ACTP512

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.05

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5

  • Body Breadth:

    14 mm

  • Body Height:

    13.5 mm

  • Body Length or Diameter:

    17.4 mm

  • Coil Current(AC)-Max:

    0.083 A

  • Coil Current(DC)-Max:

    0.083 A

  • Coil Operate Voltage(DC):

    7.2 V

  • Coil Power:

    1000 mW

  • Coil Release Voltage(DC):

    1 V

  • Coil Resistance:

    144 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    AC/DC

  • Contact Current(DC)-Max:

    30 A

  • Contact (DC) Max Rating R Load:

    30A@14VDC

  • Contact Voltage(DC)-Max:

    14 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    50000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    17.4mm x 14mm x 13.5mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
