ACW212 - Panasonic

Description: Power Relay 12VDC 1A DPST(32x18x19)mm THT Automotive

Download ACW212 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

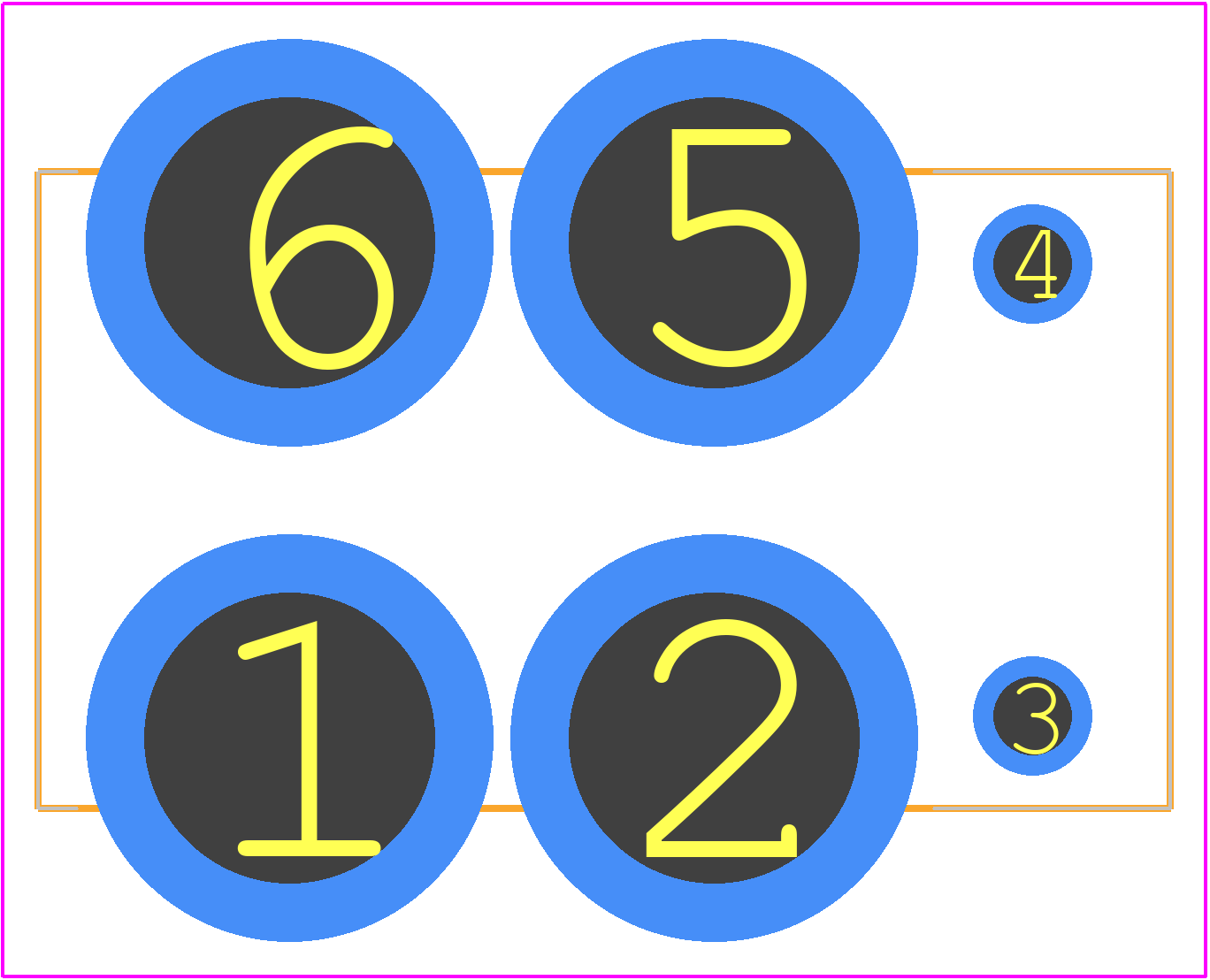

ACW212 - Panasonic PCB footprint - Other - Other - ACW212-5
click to zoom
3D Models
ACW212 - Panasonic  - 3D model - Other - ACW212-5
click to zoom

ACW212 Details

  • Manufacturer Part Number:

    ACW212

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.05

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Body Breadth:

    18 mm

  • Body Height:

    19 mm

  • Body Length or Diameter:

    32 mm

  • Coil Current(AC)-Max:

    0.117 A

  • Coil Current(DC)-Max:

    0.117 A

  • Coil Operate Voltage(DC):

    6.2 V

  • Coil Power:

    1400 mW

  • Coil Release Voltage(DC):

    0.5 V

  • Coil Resistance:

    103 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    AC/DC

  • Contact Current(DC)-Max:

    120 A

  • Contact (DC) Max Rating R Load:

    120A@14VDC

  • Contact Voltage(DC)-Max:

    14 V

  • Contact/Output Supply Type:

    DC

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    32mm x 18mm x 19mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    20 ms

ACW212 Frequently Asked Questions (FAQs)

  • Store the component in a dry, cool place, away from direct sunlight, with a temperature range of -30°C to 40°C and humidity below 70%.
  • Handle the component by the body, avoiding touching the leads or electrical contacts to prevent damage from static electricity or contamination.
  • The maximum allowable voltage for ACW212 is 50V, exceeding which may cause damage or malfunction.
  • While ACW212 is suitable for high-frequency applications, its performance may degrade above 100 kHz. For frequencies above 1 MHz, consider using a more suitable component.
  • Use a soldering iron with a temperature below 260°C, and avoid applying excessive force or bending the leads during the soldering process.
