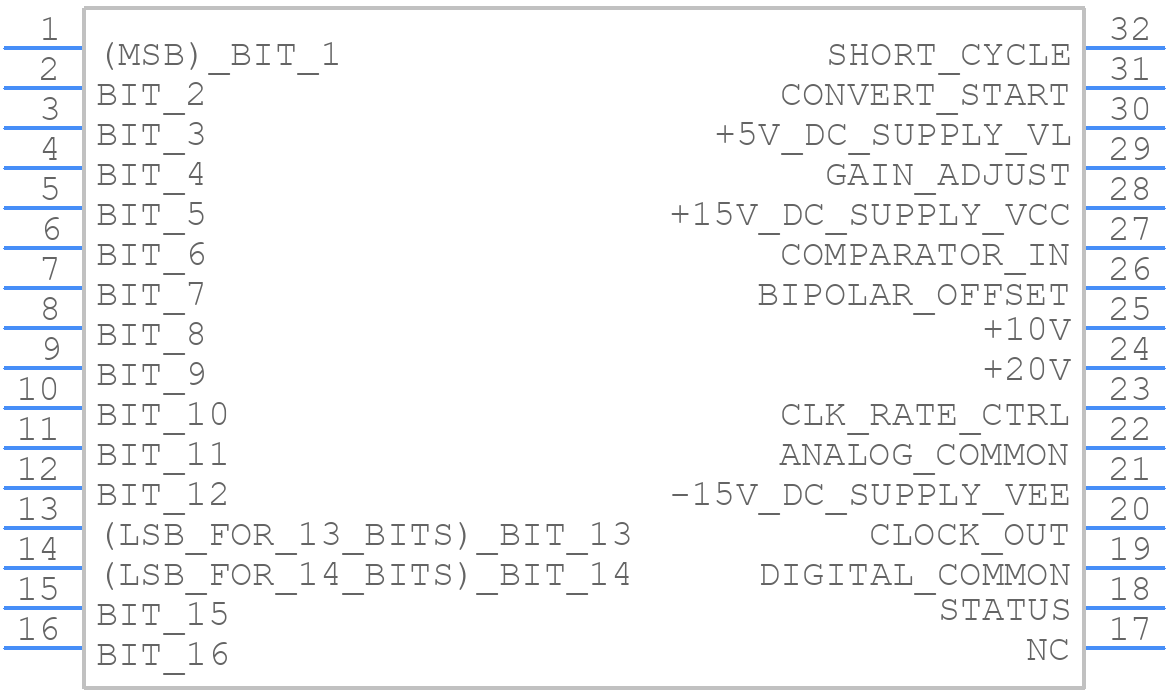

AD1376KD footprint, schematic symbol and 3D model by Analog Devices

Symbol

click to zoom

PCB Footprints

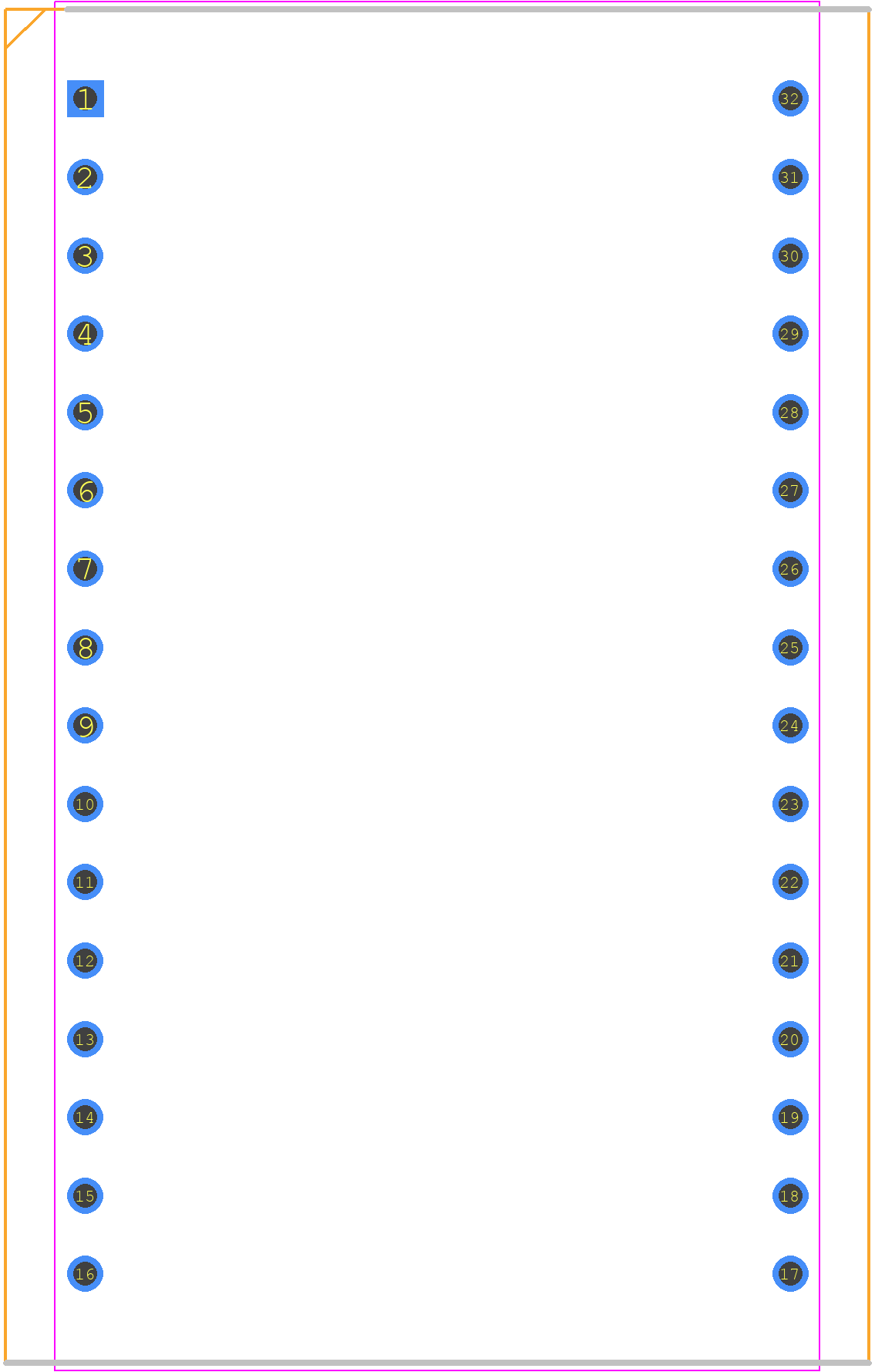

AD1376KD - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - (DH-32E)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD1376KD
Part Number AD1376KD
Manufacturer Analog Devices
Pin Count 32
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - (DH-32E)
Released Date May 16, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AD1376KD Details

Manufacturer Part Number:
AD1376KD
Brand Name:
Analog Devices Inc
Pbfree Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
DIP
Package Description:
HERMETIC SEALED, CERAMIC, DIP-32
Pin Count:
32
Manufacturer Package Code:
DH-32E
HTS Code:
8542.39.00.30
Manufacturer:
Analog Devices Inc
YTEOL:
0
Analog Input Voltage-Max:
10 V
Analog Input Voltage-Min:
-10 V
Conversion Time-Max:
17 µs
Converter Type:
ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code:
R-CDIP-T32
JESD-609 Code:
e4
Length:
44.2 mm
Linearity Error-Max (EL):
0.003%
Negative Supply Voltage-Nom:
-15 V
Number of Analog In Channels:
1
Number of Bits:
16
Number of Functions:
1
Number of Terminals:
32
Operating Temperature-Max:
70 °C
Output Bit Code:
BINARY, COMPLEMENTARY OFFSET BINARY
Output Format:
PARALLEL, WORD
Package Body Material:
CERAMIC, METAL-SEALED COFIRED
Package Code:
DIP
Package Equivalence Code:
DIP32,.9
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Sample Rate:
0.065 MHz
Sample and Hold / Track and Hold:
SAMPLE
Seated Height-Max:
5.72 mm
Supply Voltage-Nom:
15 V
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
COMMERCIAL
Terminal Finish:
GOLD
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
22.86 mm

AD1376KD Frequently Asked Questions (FAQs)

It's recommended to follow a star-grounding layout, with the AD1376KD placed close to the analog-to-digital converter (ADC) and the analog signal sources. Keep the analog and digital grounds separate, and use a single-point ground connection to minimize noise and interference.
To minimize noise, use a low-noise voltage regulator, decouple the power supplies with 10uF and 100nF capacitors, and keep the analog signal paths as short as possible. Additionally, use a shielded enclosure and avoid running digital signals near the analog signals.
The maximum clock frequency for the AD1376KD is 40 MHz. However, the recommended clock frequency is 20 MHz to ensure optimal performance and minimize jitter.
The AD1376KD has a built-in POR and BOR circuitry. To handle these functions, ensure that the power supply ramps up slowly (typically 10 ms) and that the voltage supply is stable before enabling the clock signal. This ensures a clean reset and prevents unwanted resets during power-up.
The recommended operating temperature range for the AD1376KD is -40°C to +125°C. However, the device can operate up to +150°C for short periods during soldering or reflow processes.
