AD1377JD - Analog Devices

Description: IC ADC 16BIT SAR 32BBDIP-H

Download AD1377JD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

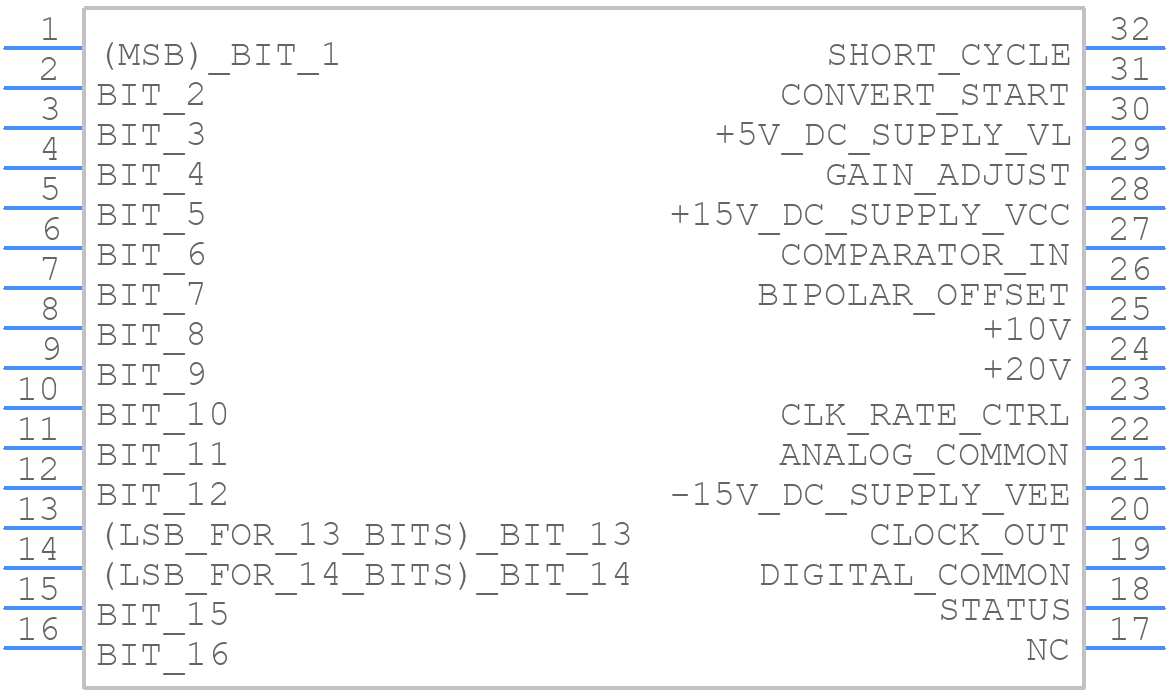

Symbol
AD1377JD - Analog Devices - PCB symbol
click to zoom

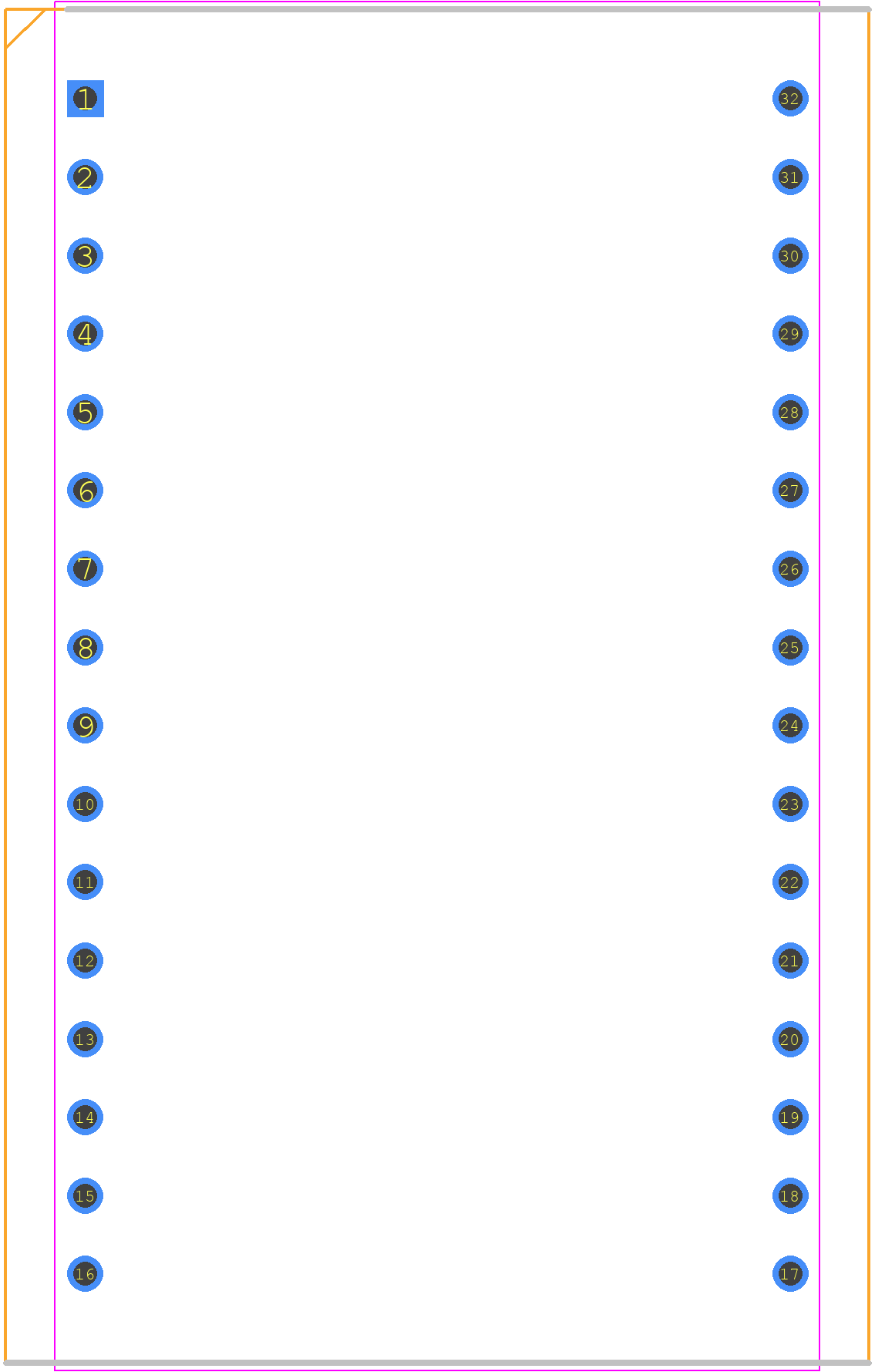

PCB Footprints
AD1377JD - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP32
click to zoom
3D Models
AD1377JD - Analog Devices - 3D model - Dual-In-Line Packages - DIP32
click to zoom

AD1377JD Details

  • Manufacturer Part Number:

    AD1377JD

  • Source Url Status Check Date:

    2013-05-01 14:56:08.259

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    HERMETIC SEALED, CERAMIC, DIP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    DH-32E

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    10 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-CDIP-T32

  • JESD-609 Code:

    e4

  • Length:

    44.2 mm

  • Linearity Error-Max (EL):

    0.006%

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, COMPLEMENTARY OFFSET BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP32,.9

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.065 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    5.72 mm

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    22.86 mm

AD1377JD Frequently Asked Questions (FAQs)

  • The AD1377JD is a sensitive device and requires careful layout and placement to minimize noise and ensure optimal performance. It's recommended to place the device close to the analog-to-digital converter (ADC) and use a ground plane to reduce noise. Additionally, keep the analog and digital signals separate and use decoupling capacitors to filter out noise.
  • The AD1377JD has a high output impedance, which can affect the signal integrity. To handle this, use a buffer amplifier or an op-amp with a low input impedance to drive the signal. Additionally, use a low-pass filter to remove high-frequency noise and ensure a stable output signal.
  • The AD1377JD requires a well-regulated power supply with minimal noise and ripple. Use a combination of ceramic and electrolytic capacitors to decouple the power supply, with a 10uF ceramic capacitor placed close to the device and a 10uF electrolytic capacitor placed further away. This will help to filter out noise and ensure a stable power supply.
  • The AD1377JD requires calibration to ensure optimal performance. Follow the calibration procedure outlined in the datasheet, which involves adjusting the offset and gain of the device. Use a high-precision voltage source and a digital multimeter to measure the output voltage and adjust the calibration resistors accordingly.
  • The AD1377JD can generate heat during operation, which can affect its performance and reliability. Use a heat sink or a thermal pad to dissipate heat away from the device. Ensure good airflow around the device and avoid placing it near other heat-generating components.
