AD1836AASZ - Analog Devices

Description: AD1836AASZ, Audio Codec 2 (ADC), 3 (DAC)-channel 24bit- 96ksps Serial-SPI 52-Pin MQFP

Download AD1836AASZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD1836AASZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

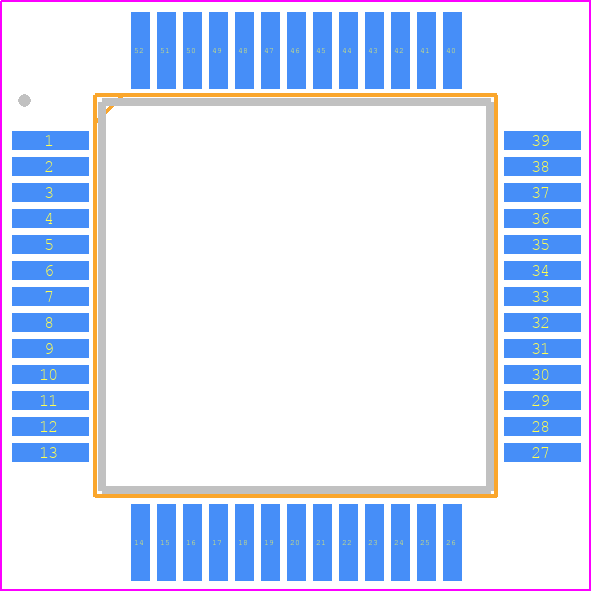

AD1836AASZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - S-52-1
click to zoom
3D Models
AD1836AASZ - Analog Devices - 3D model - Quad Flat Packages - S-52-1
click to zoom

AD1836AASZ Details

  • Manufacturer Part Number:

    AD1836AASZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Package Description:

    PLASTIC, M-022-AC, MQFP-52

  • Pin Count:

    52

  • Manufacturer Package Code:

    S-52-1

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G52

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP52,.52SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

AD1836AASZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
  • To optimize performance in a noisy environment, use proper PCB layout techniques, such as separating analog and digital grounds, using decoupling capacitors, and shielding the device from electromagnetic interference (EMI). Additionally, consider using a low-pass filter or a ferrite bead to filter out high-frequency noise.
  • The AD1836AASZ can support clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements. It's recommended to consult the datasheet and application notes for more information.
  • To configure the AD1836AASZ for stereo audio applications, connect the left and right audio channels to the corresponding analog input pins (AIN1-4). Set the device to stereo mode by setting the STEREO pin high. Additionally, configure the digital interface to transmit stereo audio data.
  • The recommended layout and routing for the AD1836AASZ involves keeping analog and digital signals separate, using short and direct traces for analog signals, and avoiding crossing digital and analog signals. Additionally, use a solid ground plane and decoupling capacitors to minimize noise and interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD1836AASZ Overview

Use the download button to access the AD1836AASZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD183, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
