AD1836AASZRL - Analog Devices

Description: Interface - CODECs IC MultiCH96 kHz Codec

Download AD1836AASZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD1836AASZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

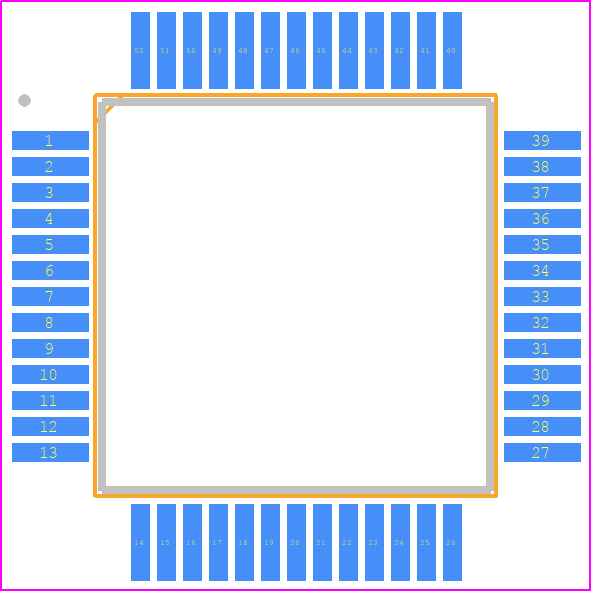

AD1836AASZRL - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - S-52-1
click to zoom
3D Models
AD1836AASZRL - Analog Devices - 3D model - Quad Flat Packages - S-52-1
click to zoom

AD1836AASZRL Details

  • Manufacturer Part Number:

    AD1836AASZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Package Description:

    PLASTIC, M-022-AC, MQFP-52

  • Pin Count:

    52

  • Manufacturer Package Code:

    S-52-1

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G52

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP52,.52SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

AD1836AASZRL Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supplies (AVDD and DVDD) before the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To optimize performance in a noisy environment, use proper PCB layout techniques, such as separating analog and digital grounds, using decoupling capacitors, and shielding the device from electromagnetic interference (EMI). Additionally, consider using a low-pass filter or a ferrite bead to filter out high-frequency noise.
  • The AD1836AASZRL can support clock frequencies up to 192 kHz, but the maximum clock frequency may vary depending on the specific application and system requirements.
  • To configure the AD1836AASZRL for stereo audio applications, connect the left and right audio channels to the corresponding analog input pins (AIN1-4). Set the device to stereo mode by setting the STEREO pin high. Additionally, configure the digital interface to transmit stereo audio data.
  • The recommended operating temperature range for the AD1836AASZRL is -40°C to +85°C. However, the device can operate at temperatures outside this range, but with reduced performance and reliability.
