AD1871YRS-REEL - Analog Devices

Description: IC ADC STEREO 24BIT 96KHZ 28SSOP

Download AD1871YRS-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

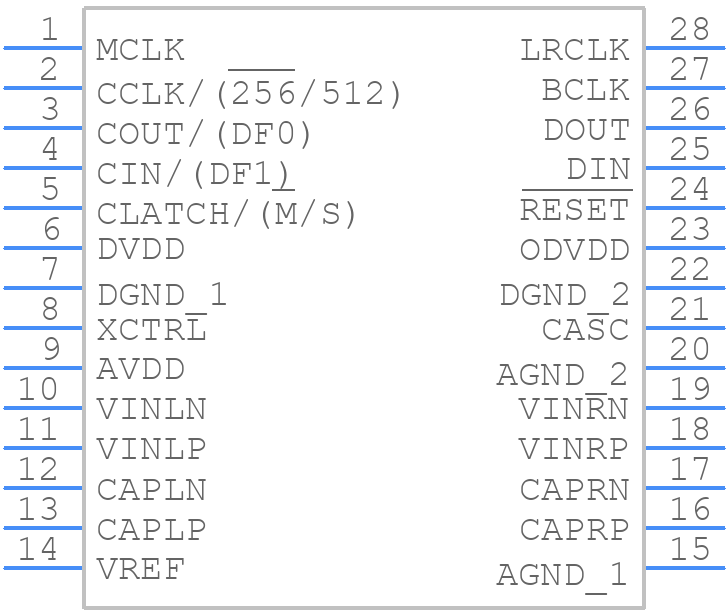

Symbol
AD1871YRS-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD1871YRS-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28
click to zoom
3D Models
AD1871YRS-REEL - Analog Devices - 3D model - Small Outline Packages - RS-28
click to zoom

AD1871YRS-REEL Details

  • Manufacturer Part Number:

    AD1871YRS-REEL

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    2.828 V

  • Analog Input Voltage-Min:

    -2.828 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e0

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.096 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    45 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD1871YRS-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD1871YRS-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for power supply decoupling.
  • The AD1871YRS-REEL has an internal calibration mechanism, but it may require additional calibration for specific applications. Engineers can use the device's calibration pins to adjust the gain and offset to match their specific requirements. It's also recommended to consult the device's calibration procedure in the datasheet and to use a high-precision voltage reference for calibration.
  • The AD1871YRS-REEL has an operating temperature range of -40°C to +125°C, but it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • The AD1871YRS-REEL is a surface-mount device and can be sensitive to high-vibration environments. Engineers should take precautions to ensure the device is properly secured to the PCB and that the PCB is designed to withstand vibrations. Additionally, it's recommended to use a vibration-resistant mounting method, such as a screw-down or adhesive mounting, to secure the device.
  • To troubleshoot common issues with the AD1871YRS-REEL, engineers should first consult the device's datasheet and application notes. Common issues can often be resolved by checking the power supply, analog signal sources, and PCB layout. Engineers can also use oscilloscopes and spectrum analyzers to identify and diagnose issues such as noise or oscillations.
