AD1871YRSZ-REEL - Analog Devices

Description: Audio A/D Converter ICs 24BIT 96KHZ STEREO

Download AD1871YRSZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

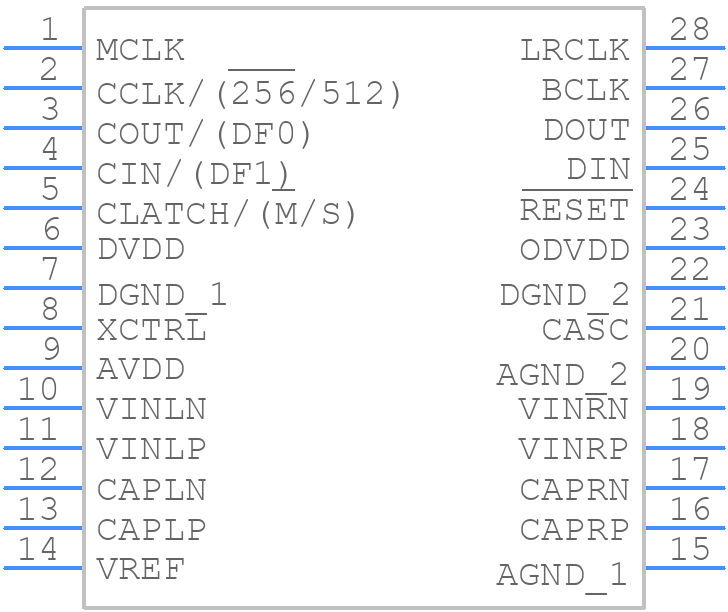

AD1871YRSZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD1871YRSZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SOIC)
click to zoom
3D Models
AD1871YRSZ-REEL - Analog Devices - 3D model - Small Outline Packages - RS-28 (SOIC)
click to zoom

AD1871YRSZ-REEL Details

  • Manufacturer Part Number:

    AD1871YRSZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Input Voltage-Max:

    2.828 V

  • Analog Input Voltage-Min:

    -2.828 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.096 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    45 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD1871YRSZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD1871YRSZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • The AD1871YRSZ-REEL is a self-calibrating ADC, but it's still important to ensure that the device is properly calibrated during power-up. This can be done by following the recommended power-up sequence and allowing the device to complete its internal calibration cycle before taking any measurements.
  • The maximum sampling rate of the AD1871YRSZ-REEL is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency and the device's internal clock divider settings.
  • Yes, the AD1871YRSZ-REEL can be used in a multi-channel application, but it requires an external multiplexer to switch between channels. The device's high-speed serial interface can be used to daisy-chain multiple devices, allowing for a high-channel-count system.
  • The AD1871YRSZ-REEL's digital output data is in a 16-bit twos-complement format. The data can be handled using a microcontroller or an FPGA, which can perform further processing, such as filtering, scaling, and formatting, before transmitting the data to a host system.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD1871YRSZ-REEL Overview

Use the download button to access the AD1871YRSZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD187, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
