AD1877JRZ - Analog Devices

Description: AD1877JRZ, Audio ADC Dual 16bit-, 48ksps, 28-Pin SOIC W

Download AD1877JRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

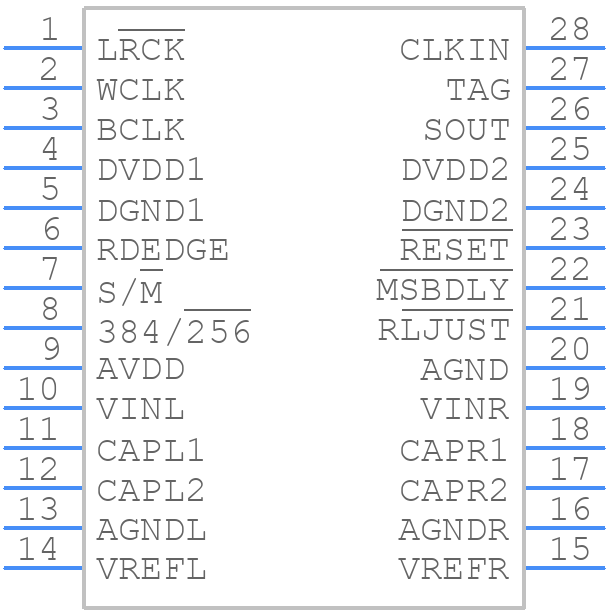

AD1877JRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD1877JRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-28 (SOIC)
click to zoom
3D Models
AD1877JRZ - Analog Devices - 3D model - Small Outline Packages - R-28 (SOIC)
click to zoom

AD1877JRZ Details

  • Manufacturer Part Number:

    AD1877JRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RW-28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Input Voltage-Max:

    4.1 V

  • Analog Input Voltage-Min:

    0.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    43 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD1877JRZ Frequently Asked Questions (FAQs)

  • The AD1877JRZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog-to-digital converter (ADC) and to use a ground plane to reduce noise. Additionally, it is recommended to use a separate analog and digital power supply to reduce noise and interference.
  • To optimize the performance of the AD1877JRZ in a noisy environment, it is recommended to use shielding, filtering, and decoupling to reduce electromagnetic interference (EMI). Additionally, using a low-pass filter at the output of the AD1877JRZ can help to reduce high-frequency noise.
  • The AD1877JRZ is specified to operate over a temperature range of -40°C to +125°C. However, it is recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • Common issues with the AD1877JRZ include noise, distortion, and oscillation. To troubleshoot these issues, it is recommended to check the power supply, layout, and grounding of the device. Additionally, using an oscilloscope to measure the output of the AD1877JRZ can help to identify the source of the issue.
  • The recommended power-up sequence for the AD1877JRZ is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensure reliable operation.
