AD1895AYRSZRL - Analog Devices

Description: Sample Rate Converter 192ksps 24bit Automotive 28-Pin SSOP T/R

Download AD1895AYRSZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

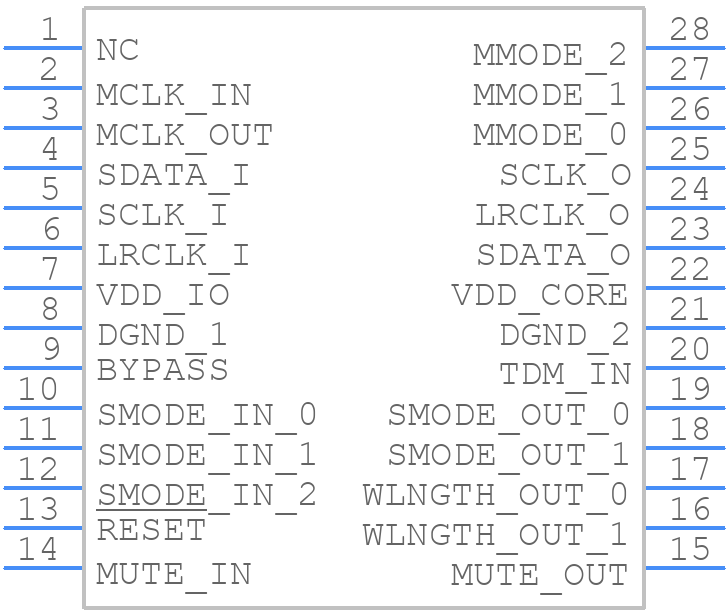

Symbol
AD1895AYRSZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD1895AYRSZRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SOIC)
click to zoom
3D Models
AD1895AYRSZRL - Analog Devices - 3D model - Small Outline Packages - RS-28 (SOIC)
click to zoom

AD1895AYRSZRL Details

  • Manufacturer Part Number:

    AD1895AYRSZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    PLASTIC, MO-150AH, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    3.456 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD1895AYRSZRL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star-grounding configuration to minimize noise and ensure a clean power supply.
  • Use a high-quality, low-noise power supply with a minimum of 1.8V and a maximum of 5.5V. Ensure the power supply is decoupled with 10uF and 100nF capacitors in parallel, placed close to the device. Use a 0.1uF capacitor between the AVDD and AGND pins.
  • The recommended clock frequency is between 10 kHz and 100 kHz. However, the device can operate up to 200 kHz, but with reduced performance. A higher clock frequency can lead to increased power consumption and noise.
  • Use a shielded enclosure, keep analog and digital signals separate, and avoid running digital signals near the AD1895AYRSZRL. Use a common-mode choke or a ferrite bead to filter the power supply. Ensure good grounding and decoupling practices.
  • The device has a thermal pad on the bottom. Use a thermal interface material (TIM) to improve heat transfer between the device and the PCB. Ensure good airflow around the device, and consider using a heat sink or a thermal management system for high-power applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD1895AYRSZRL Overview

Use the download button to access the AD1895AYRSZRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD189, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
