AD1896AYRSZRL - Analog Devices

Description: Sample Rate Converter 192ksps 24bit Automotive 28-Pin SSOP T/R

Download AD1896AYRSZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

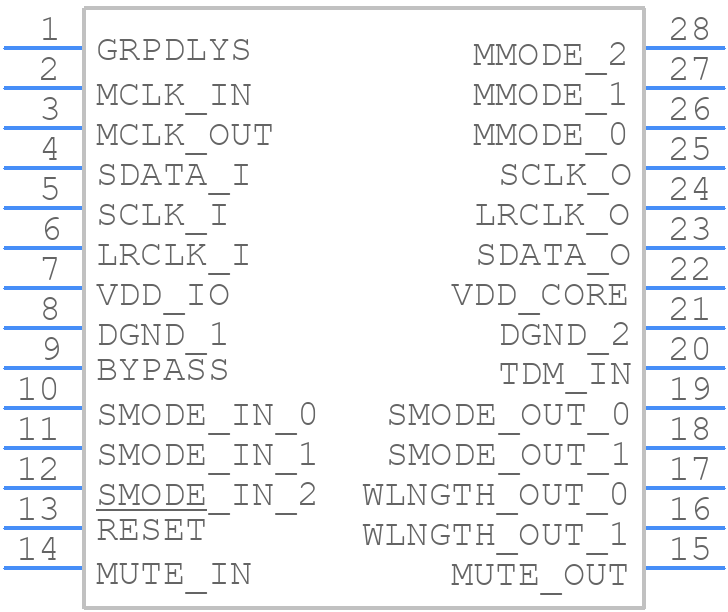

AD1896AYRSZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD1896AYRSZRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SOIC)
click to zoom
3D Models
AD1896AYRSZRL - Analog Devices - 3D model - Small Outline Packages - RS-28 (SOIC)
click to zoom

AD1896AYRSZRL Details

  • Manufacturer Part Number:

    AD1896AYRSZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    PLASTIC, MO-150AH, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD1896AYRSZRL Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the analog input signals. This ensures proper device operation and prevents potential latch-up conditions.
  • To minimize noise and EMI, it's essential to follow good PCB design practices, such as separating analog and digital grounds, using a solid ground plane, and keeping sensitive analog signals away from digital signals. Additionally, use shielding and filtering components, such as ferrite beads and capacitors, to reduce noise and EMI.
  • The maximum allowed input voltage for the AD1896AYRSZRL is 5.5V. Exceeding this voltage can cause the device to malfunction or even damage it. It's essential to ensure that the input voltage remains within the specified range to maintain proper device operation and prevent potential damage.
  • The AD1896AYRSZRL has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. The OVP circuit limits the output voltage to prevent damage from excessive input voltages, while the UVP circuit ensures that the device remains in a safe state during power-up and power-down sequences.
  • The recommended operating temperature range for the AD1896AYRSZRL is -40°C to +125°C. Temperature affects the device's performance, with increased temperature causing a decrease in accuracy and an increase in noise. It's essential to ensure that the device operates within the specified temperature range to maintain optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD1896AYRSZRL Overview

Use the download button to access the AD1896AYRSZRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD189, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
