AD1953YSTZRL - Analog Devices

Description: DAC 3-CH Delta-Sigma 24-bit Automotive 48-Pin LQFP T/R

Download AD1953YSTZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

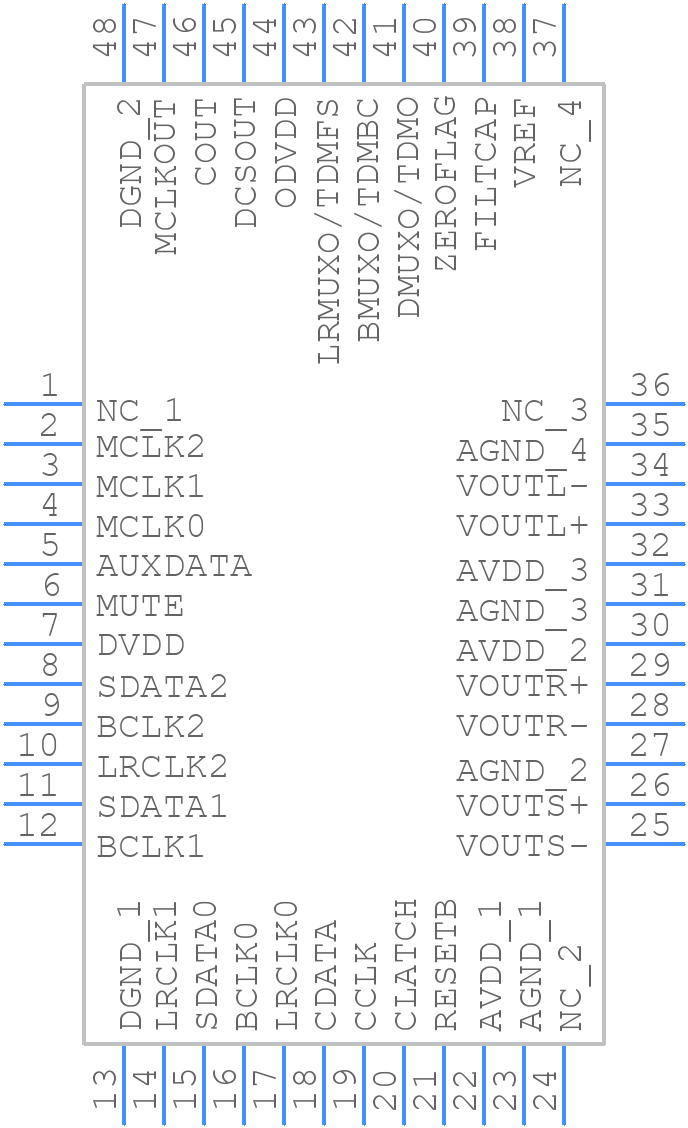

AD1953YSTZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD1953YSTZRL - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ST-48 (LQFP)
click to zoom
3D Models
AD1953YSTZRL - Analog Devices - 3D model - Quad Flat Packages - ST-48 (LQFP)
click to zoom

AD1953YSTZRL Details

  • Manufacturer Part Number:

    AD1953YSTZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Package Description:

    PLASTIC, MS-026BBC, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD1953YSTZRL Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VCC, and then the digital supplies (VDD_IO and VCC_IO). This ensures proper device operation and prevents latch-up.
  • To optimize for low-power operation, set the device to the lowest possible clock frequency, disable unused features, and adjust the digital interface settings to minimize power consumption. Additionally, consider using the device's power-down modes and dynamic voltage scaling.
  • The maximum allowed input voltage for the AD1953YSTZRL's analog inputs is 2.5 V, which is the same as the analog supply voltage (VCC). Exceeding this voltage may damage the device or affect its performance.
  • To configure the digital interface for optimal performance, ensure that the clock frequency is within the recommended range (typically 256 fs to 512 fs), and adjust the digital interface settings (such as the data format and clock polarity) according to the specific application requirements.
  • For optimal performance, follow a star-ground topology, keep analog and digital signals separate, and use a solid ground plane. Additionally, ensure that the device's power supplies are decoupled and filtered, and that the PCB layout minimizes electromagnetic interference (EMI).
