AD1983JCPZ-REEL - Analog Devices

Description: IC CODEC HD AUDIO 32-LFCSP

Download AD1983JCPZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

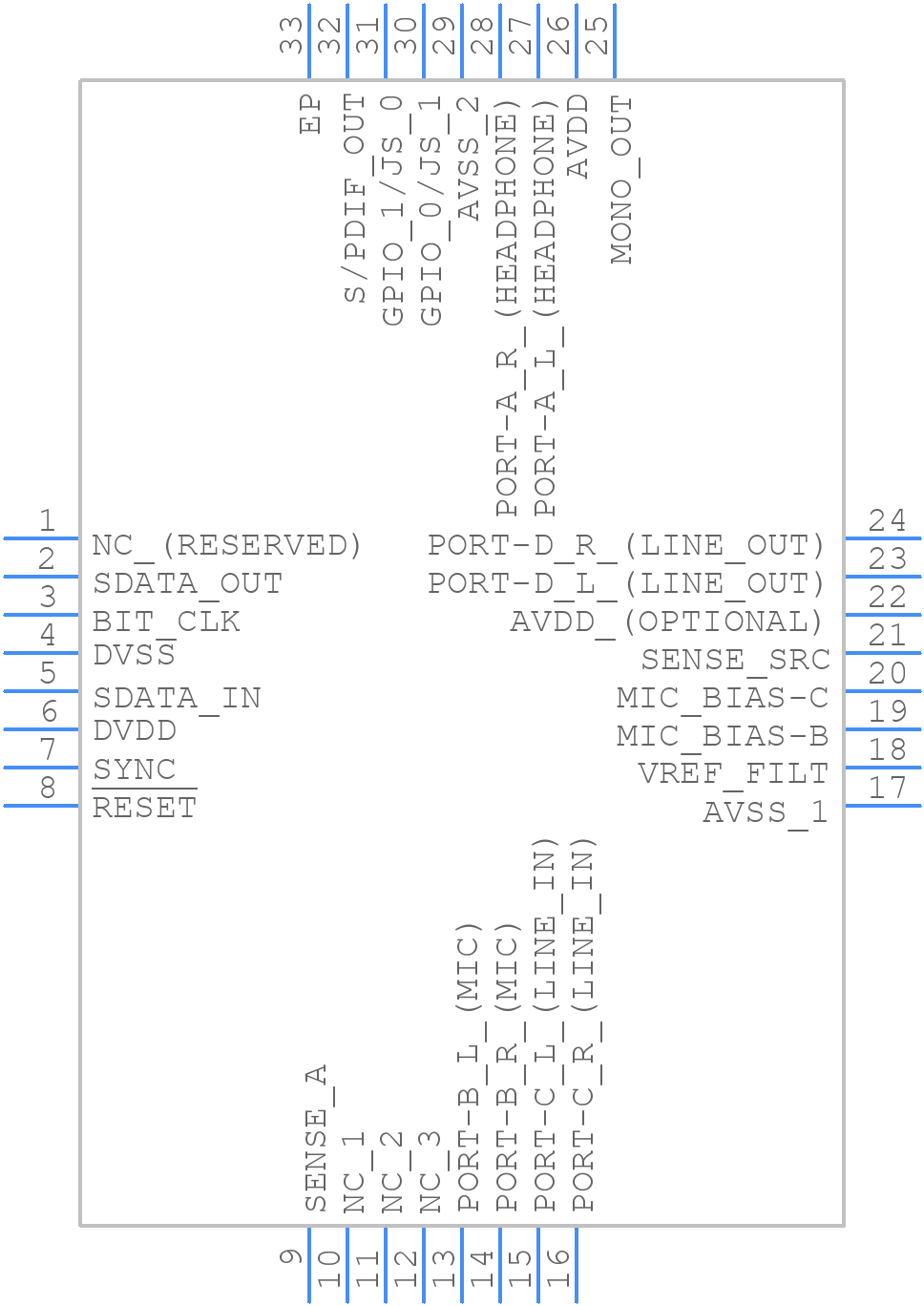

AD1983JCPZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD1983JCPZ-REEL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-4 (LFCSP)
click to zoom
3D Models
AD1983JCPZ-REEL - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-4 (LFCSP)
click to zoom

AD1983JCPZ-REEL Details

  • Manufacturer Part Number:

    AD1983JCPZ-REEL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, LEAD FREE, MO-220VHHD-2, LFCSP-32

  • Pin Count:

    32

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD1983JCPZ-REEL Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and minimize the length of the analog signal traces. It's also recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize performance in a noisy environment, use a low-pass filter on the analog input signals, ensure good power supply decoupling, and use a shielded enclosure to reduce electromagnetic interference (EMI). Additionally, consider using a common-mode choke or a ferrite bead on the analog input lines.
  • The AD1983JCPZ-REEL can support clock frequencies up to 192 kHz, but the maximum clock frequency may vary depending on the specific application and system requirements. It's recommended to consult the datasheet and application notes for more information.
  • To configure the AD1983JCPZ-REEL for stereo audio applications, connect the left and right audio channels to the corresponding analog input pins (AIN1 and AIN2), and set the device to stereo mode using the appropriate register settings. Consult the datasheet and application notes for more information on register settings and configuration.
  • The power consumption of the AD1983JCPZ-REEL varies depending on the operating mode and clock frequency. In typical operating conditions, the device consumes around 20-30 mA of current. Consult the datasheet for more information on power consumption and power-down modes.
