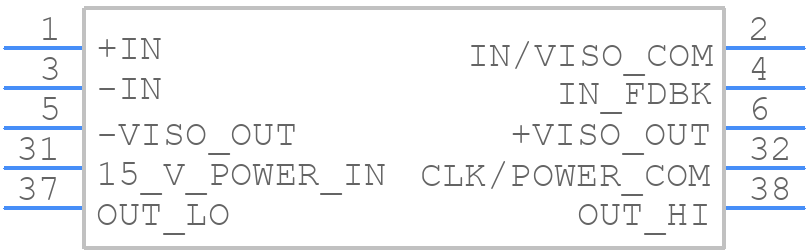

AD202KY - Analog Devices

AD202KY Details

• Manufacturer Part Number:

  AD202KY

• Source Url Status Check Date:

  2013-05-01 14:56:08.988

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  ZIP

• Package Description:

  SIP-10

• Pin Count:

  10

• Manufacturer Package Code:

  Y-10(202)

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Amplifier Type:

  ISOLATION AMPLIFIER

• Bandwidth (3dB)-Nom:

  2 MHz

• Common Mode Voltage-Max:

  1414.2271 V

• Isolation Voltage-Min:

  1500 V

• JESD-30 Code:

  R-XZMA-T10

• JESD-609 Code:

  e0

• Length:

  52.8 mm

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DIP

• Package Equivalence Code:

  ZIP38,.1,.1

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  15.9 mm

• Supply Current-Max:

  5 mA

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  ZIG-ZAG

• Voltage Gain-Max:

  100

• Voltage Gain-Min:

  1

• Width:

  6.3 mm
