AD22057RZ-RL - Analog Devices

Description: Analog Devices AD22057RZ-RL, Current Sensing Amplifier Single Differential 8-Pin SOIC

Download AD22057RZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

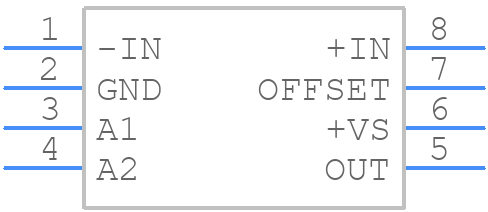

AD22057RZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD22057RZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R8
click to zoom
3D Models
AD22057RZ-RL - Analog Devices - 3D model - Small Outline Packages - R8
click to zoom

AD22057RZ-RL Details

  • Manufacturer Part Number:

    AD22057RZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    0.03 MHz

  • Common-mode Reject Ratio-Min:

    80 dB

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.2 V/us

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Voltage Gain-Max:

    20.1

  • Voltage Gain-Min:

    19.9

  • Voltage Gain-Nom:

    20

  • Width:

    3.9 mm
