AD22100KRZ - Analog Devices

Description: AD22100KRZ, Temperature Sensor ±0.5°C 4 to 6.5V 8-Pin SOIC

Download AD22100KRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

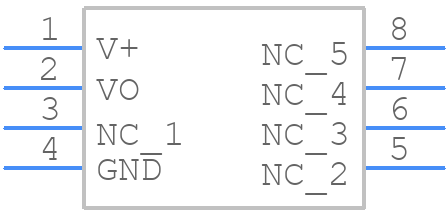

AD22100KRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD22100KRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
AD22100KRZ - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

AD22100KRZ Details

  • Manufacturer Part Number:

    AD22100KRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    2 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.55 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.65 mA

  • Operating Temperature-Max:

    100 °C

  • Output Voltage-Max:

    3.62 V

  • Output Voltage-Min:

    1.37 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT

  • Supply Voltage-Max:

    6.5 V

  • Supply Voltage-Min:

    4 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

AD22100KRZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for decoupling and place it close to the device.
  • Ensure good thermal contact between the device and the heat source. Use a thermally conductive adhesive or thermal tape to attach the device to the heat source. Avoid air gaps and ensure the device is not exposed to air currents.
  • The AD22100KRZ can operate from -40°C to +150°C, but the accuracy of the temperature measurement is specified from -20°C to +150°C. For accurate measurements, it's recommended to operate within the specified temperature range.
  • The AD22100KRZ does not require calibration. It is a self-contained temperature sensor with internal calibration. However, it's recommended to perform a system-level calibration to account for any system-specific errors or variations.
  • Power up the device with a single 5V supply. Ensure the power supply is stable and within the recommended operating range. Avoid powering up the device with a split supply or with the analog and digital supplies at different voltages.
