AD2426BCPZ - Analog Devices

Description: A2B Last-in-Line Subordinate 4xPDM XCVR

Download AD2426BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

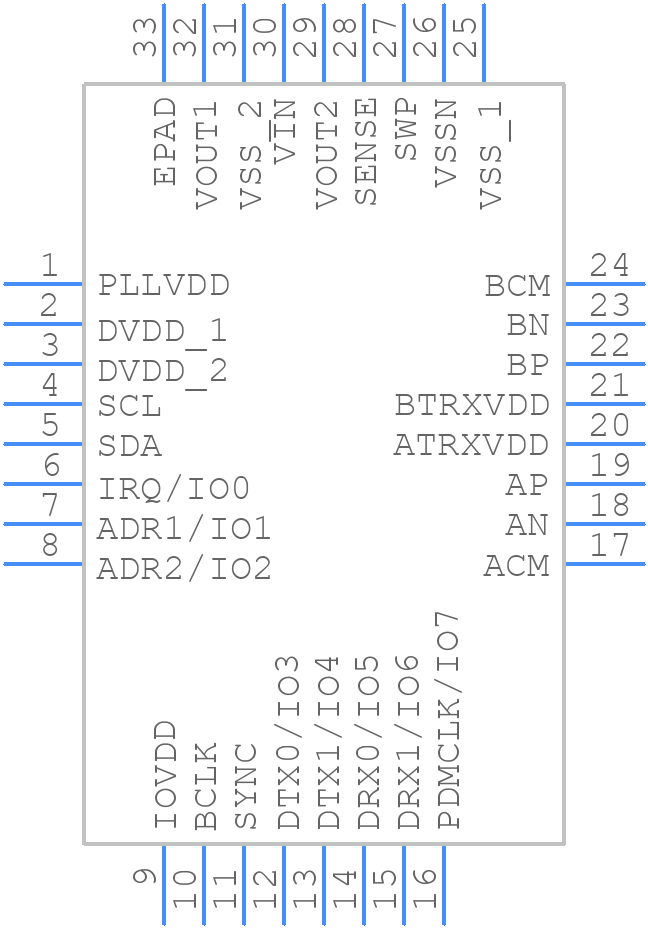

AD2426BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD2426BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP]_
click to zoom
3D Models
AD2426BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP]_
click to zoom

AD2426BCPZ Details

  • Manufacturer Part Number:

    AD2426BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-01-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • High Level Input Current-Max:

    0.00001 A

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    I2C

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.21 V

  • Output Characteristics:

    OPEN-DRAIN

  • Output Low Current-Max:

    0.001 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Max:

    1.98 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.9 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD2426BCPZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD2426BCPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the analog and digital components. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, the device should be placed close to the analog components to minimize noise and interference.
  • To optimize the performance of the AD2426BCPZ in a noisy environment, it is recommended to use proper shielding, grounding, and decoupling techniques. Additionally, the device should be placed in a shielded enclosure, and the analog and digital components should be separated to minimize electromagnetic interference (EMI). The use of a common-mode choke or a ferrite bead can also help to reduce EMI.
  • The maximum operating temperature range for the AD2426BCPZ is -40°C to +125°C. However, the device's performance may degrade at temperatures above 85°C, and it is recommended to operate the device within the -40°C to +85°C range for optimal performance.
  • Yes, the AD2426BCPZ can be used in a battery-powered device. The device has a low power consumption of 12.5 mW per channel, making it suitable for battery-powered applications. However, it is recommended to use a low-dropout regulator (LDO) to regulate the power supply to the device and to minimize power consumption.
  • To troubleshoot issues with the AD2426BCPZ, it is recommended to check the power supply, clock, and data signals to ensure they are within the specified ranges. Additionally, the device's output should be checked for proper operation, and the analog and digital grounds should be checked for noise and interference. If issues persist, it is recommended to consult the device's datasheet and application notes, or to contact Analog Devices' technical support.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD2426BCPZ Overview

Use the download button to access the AD2426BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD242, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
