AD2427BCPZ - Analog Devices

Description: Audio Transmitters, Receivers, Transceivers A2B Transceiver

Download AD2427BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

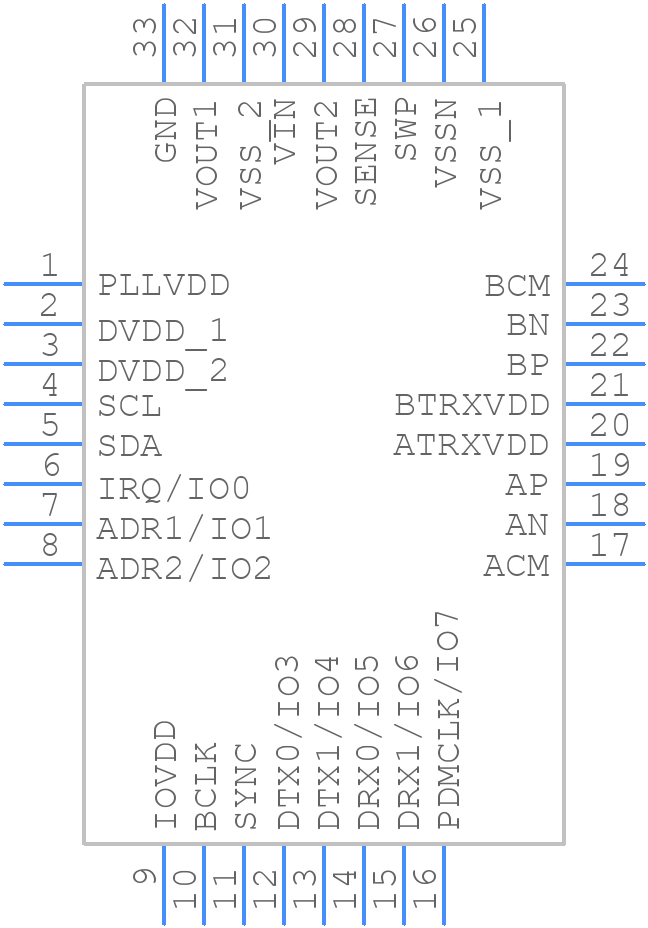

AD2427BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD2427BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-1
click to zoom
3D Models
AD2427BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-1
click to zoom

AD2427BCPZ Details

  • Manufacturer Part Number:

    AD2427BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-01-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • High Level Input Current-Max:

    0.00001 A

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    I2C

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.21 V

  • Output Characteristics:

    OPEN-DRAIN

  • Output Low Current-Max:

    0.001 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Max:

    1.98 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.9 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD2427BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD2427BCPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the analog-to-digital converter (ADC). Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The AD2427BCPZ has an internal calibration mechanism, but it may require additional calibration for specific applications. Engineers can use the device's built-in calibration registers to adjust the gain and offset of the device. Additionally, external calibration can be performed using an external reference voltage and a calibration algorithm.
  • The AD2427BCPZ can achieve a maximum data rate of 105 MSPS (mega-samples per second) in its high-speed mode. However, the actual data rate may be limited by the specific application, the quality of the PCB layout, and the performance of the ADC.
  • To handle high-frequency noise and EMI, engineers can use shielding, filtering, and grounding techniques. Additionally, they can use the device's built-in EMI filters and noise reduction features, such as the programmable gain amplifier (PGA) and the analog-to-digital converter (ADC) noise reduction modes.
  • The power consumption of the AD2427BCPZ varies depending on the mode of operation and the clock frequency. In its low-power mode, the device consumes around 12 mW. To optimize power consumption, engineers can use the device's power-down modes, reduce the clock frequency, and use a low-power ADC.
