AD2427KCPZ - Analog Devices

Description: A2B Mid-Line Subordinate 4xPDM XCVR

Download AD2427KCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

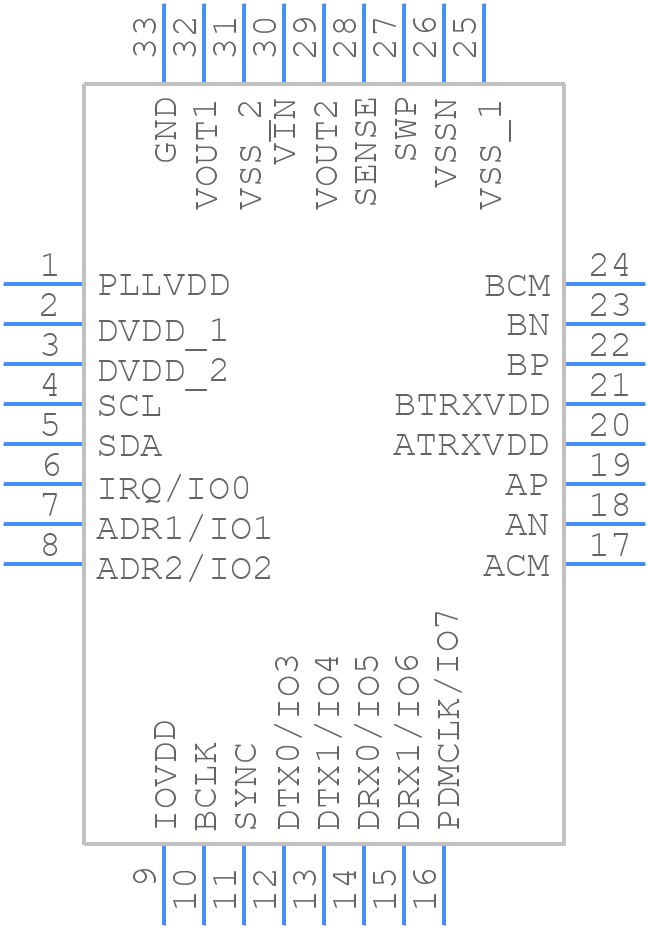

Symbol
AD2427KCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD2427KCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-1
click to zoom
3D Models
AD2427KCPZ - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-1
click to zoom

AD2427KCPZ Details

  • Manufacturer Part Number:

    AD2427KCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-01-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • High Level Input Current-Max:

    0.00001 A

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    I2C

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    0.21 V

  • Output Characteristics:

    OPEN-DRAIN

  • Output Low Current-Max:

    0.001 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Max:

    1.98 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.9 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD2427KCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the AD2427KCPZ. It's recommended to follow a star-ground configuration, keep analog and digital grounds separate, and use a solid ground plane. Additionally, place the device close to the analog signal sources, and use short, direct traces to minimize noise and signal degradation.
  • The AD2427KCPZ can operate with various clock frequencies. To configure it, set the clock frequency using the CLKIN pin, and adjust the internal clock divider (ICD) using the ICD[2:0] pins. Refer to the datasheet for specific clock frequency settings and ICD configurations.
  • The AD2427KCPZ has a maximum input voltage range of ±VREF (typically ±2.5 V). For overvoltage protection, use external resistors and diodes to limit the input voltage to within the specified range. You can also use an external voltage limiter or clamp circuit to protect the device from overvoltage conditions.
  • To minimize power consumption, operate the AD2427KCPZ at the lowest possible clock frequency, use the power-down mode (PD pin) when not in use, and reduce the voltage supply (VCC) to the minimum recommended value. Additionally, consider using a lower power mode (e.g., standby mode) when the device is not actively converting data.
  • The AD2427KCPZ has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, maintain a safe operating temperature by providing adequate heat dissipation through a heat sink, thermal pad, or PCB design. Monitor the device temperature using the internal temperature sensor (TEMP pin) and take corrective action if necessary.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD2427KCPZ Overview

Use the download button to access the AD2427KCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD242, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
