AD2428BCPZ - Analog Devices

Description: Audio Transmitters, Receivers, Transceivers A2B Transceiver (Master)

Download AD2428BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

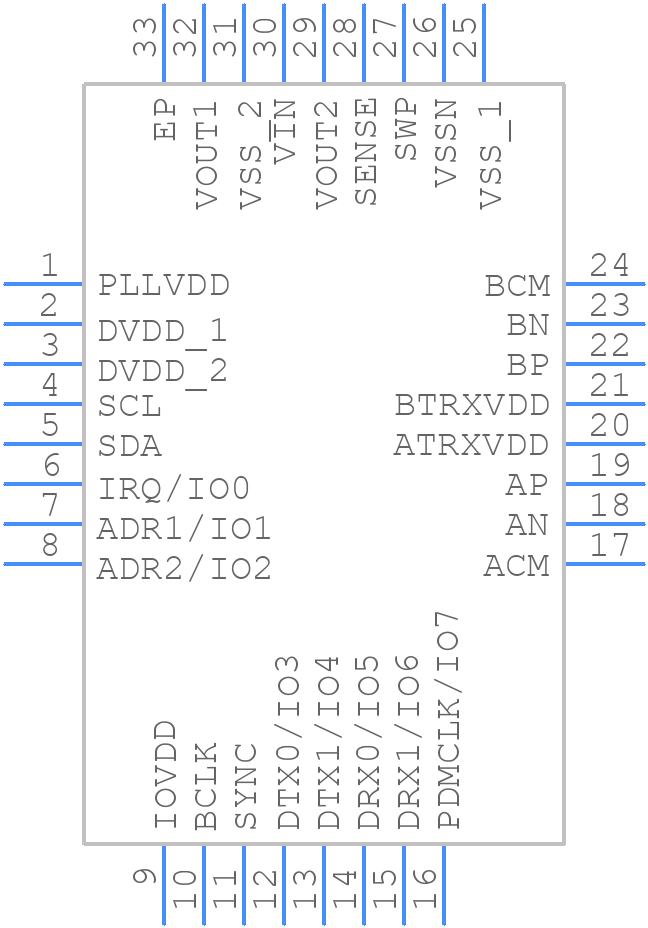

AD2428BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD2428BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-12
click to zoom
3D Models
AD2428BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-12
click to zoom

AD2428BCPZ Details

  • Manufacturer Part Number:

    AD2428BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-01-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • High Level Input Current-Max:

    0.00001 A

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    I2C

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.21 V

  • Output Characteristics:

    OPEN-DRAIN

  • Output Low Current-Max:

    0.001 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Max:

    1.98 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.9 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD2428BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD2428BCPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the performance of the AD2428BCPZ in a noisy environment, use shielding, filtering, and grounding techniques to minimize electromagnetic interference (EMI). Additionally, use a low-pass filter at the input to remove high-frequency noise, and consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
  • The AD2428BCPZ can support clock frequencies up to 100 MHz, but the maximum clock frequency may vary depending on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for more information.
  • To configure the AD2428BCPZ for differential operation, connect the positive input to the IN+ pin and the negative input to the IN- pin. For pseudo-differential operation, connect the positive input to the IN+ pin and the negative input to the COM pin. Consult the datasheet for more information on the specific pin connections and configuration options.
  • The power consumption of the AD2428BCPZ varies depending on the operating mode and the clock frequency. To reduce power consumption, consider using the low-power mode, reducing the clock frequency, or using a lower supply voltage. Additionally, consider using power-saving techniques such as dynamic voltage and frequency scaling.
