AD2428WCCSZ - Analog Devices

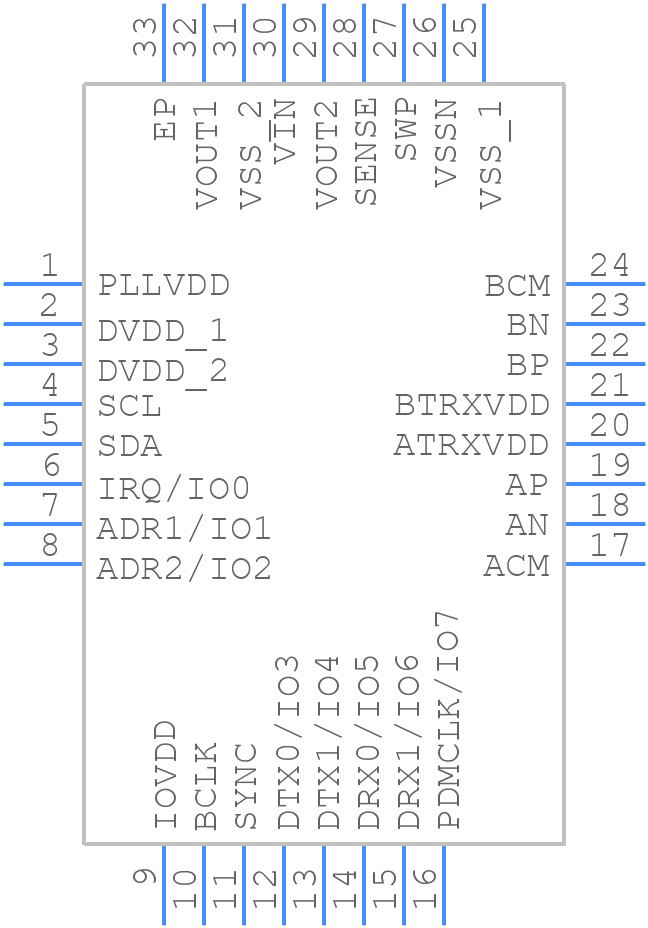

AD2428WCCSZ Details

• Manufacturer Part Number:

  AD2428WCCSZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LFCSP-32

• Pin Count:

  32

• Manufacturer Package Code:

  CS-32-2

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2019-10-15

• Manufacturer:

  Analog Devices Inc

• Differential Output:

  YES

• Driver Number of Bits:

  1

• High Level Input Current-Max:

  0.000001 A

• Input Characteristics:

  STANDARD

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  12C

• JESD-30 Code:

  S-XQCC-N32

• Length:

  5 mm

• Number of Functions:

  1

• Number of Terminals:

  32

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  0.21 V

• Output Characteristics:

  OPEN-DRAIN

• Output Low Current-Max:

  0.0015 A

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC32,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Receiver Number of Bits:

  1

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  0.8 mm

• Supply Current-Max:

  12 mA

• Supply Voltage-Max:

  1.98 V

• Supply Voltage-Min:

  1.7 V

• Supply Voltage-Nom:

  1.9 V

• Supply Voltage1-Max:

  1.98 V

• Supply Voltage1-Min:

  1.7 V

• Supply Voltage1-Nom:

  1.9 V

• Surface Mount:

  YES

• Technology:

  DMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  5 mm
