AD3551RBCPZ16 - Analog Devices

Description: Single Channel, 16-Bit, 33 MUPS, Multispan, Multi-IO SPI DAC

Download AD3551RBCPZ16 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

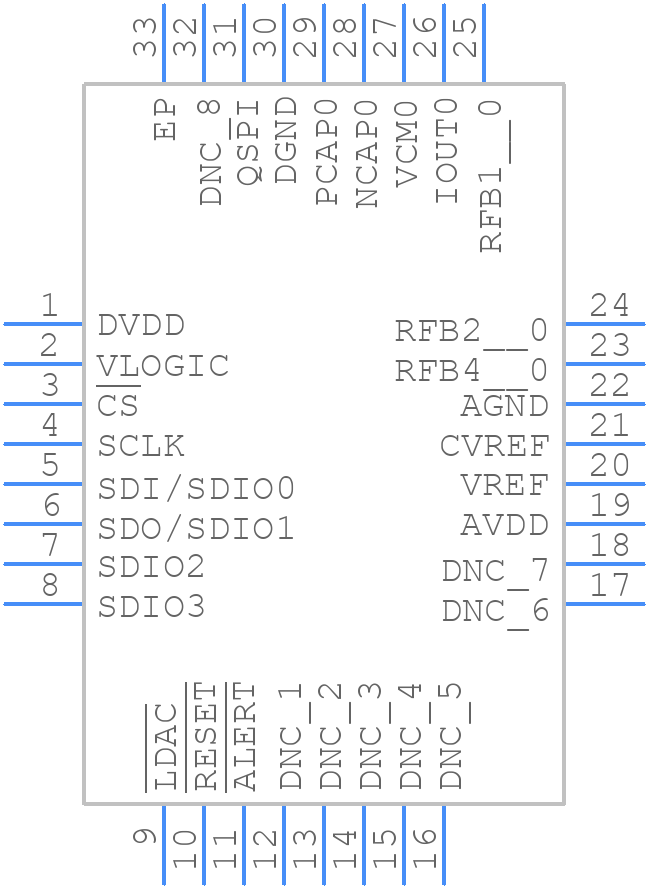

AD3551RBCPZ16 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD3551RBCPZ16 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-30
click to zoom
3D Models
AD3551RBCPZ16 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-30
click to zoom

AD3551RBCPZ16 Details

  • Manufacturer Part Number:

    AD3551RBCPZ16

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-30

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XBCS-N32

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.006103%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BCS

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP SCALE

  • Seated Height-Max:

    1 mm

  • Settling Time-Nom (tstl):

    0.1 µs

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    5 mm

AD3551RBCPZ16 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD3551RBCPZ16 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the analog inputs. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be operated within its specified temperature range, and the temperature sensor should be placed close to the device being measured.
  • The maximum allowed voltage on the analog input pins of the AD3551RBCPZ16 is the supply voltage (VCC) + 0.3V. Exceeding this voltage can damage the device. It's recommended to use input protection circuits, such as voltage dividers or clamping diodes, to prevent overvoltage conditions.
  • Yes, the AD3551RBCPZ16 can be used in a multi-channel configuration. However, it's essential to ensure that each channel is properly isolated and that the analog inputs are not overloaded. Additionally, the device's power consumption and thermal performance should be considered when designing a multi-channel system.
  • To troubleshoot common issues with the AD3551RBCPZ16, start by checking the power supply voltage, ensuring that it's within the specified range. Next, verify that the device is properly configured and that the analog inputs are not overloaded. Check for noise and interference on the analog inputs and ensure that the device is operated within its specified temperature range. If the issue persists, consult the device's datasheet and application notes or contact Analog Devices' technical support.
